QUALITY CONTROL & INSPECTION
Quality control and inspection delivery
Control critical features through incoming, in-process, heat-treatment, finishing, final inspection and packing records.
ENGINEERING CONTEXT
Inspection workflow and deliverables

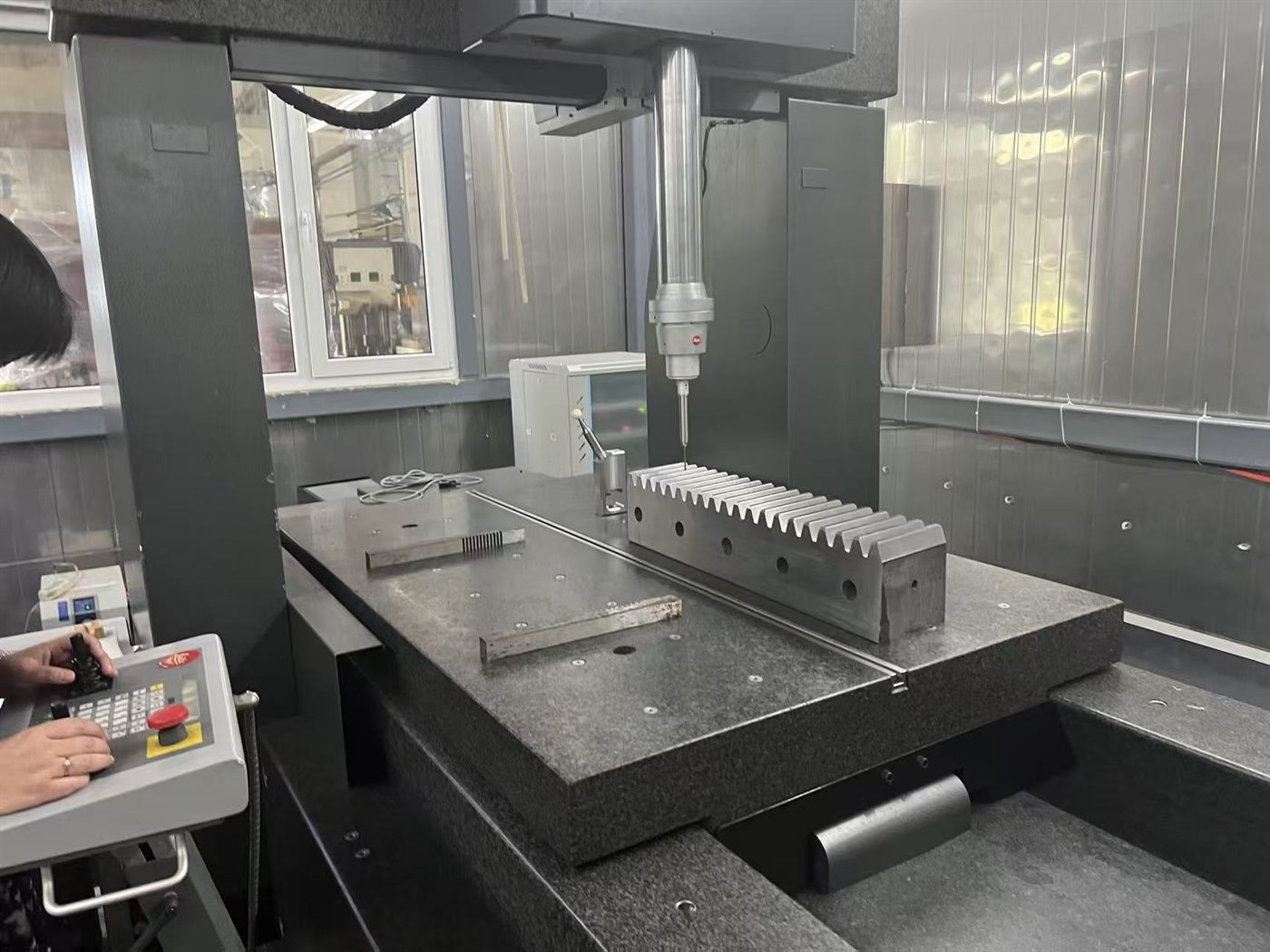

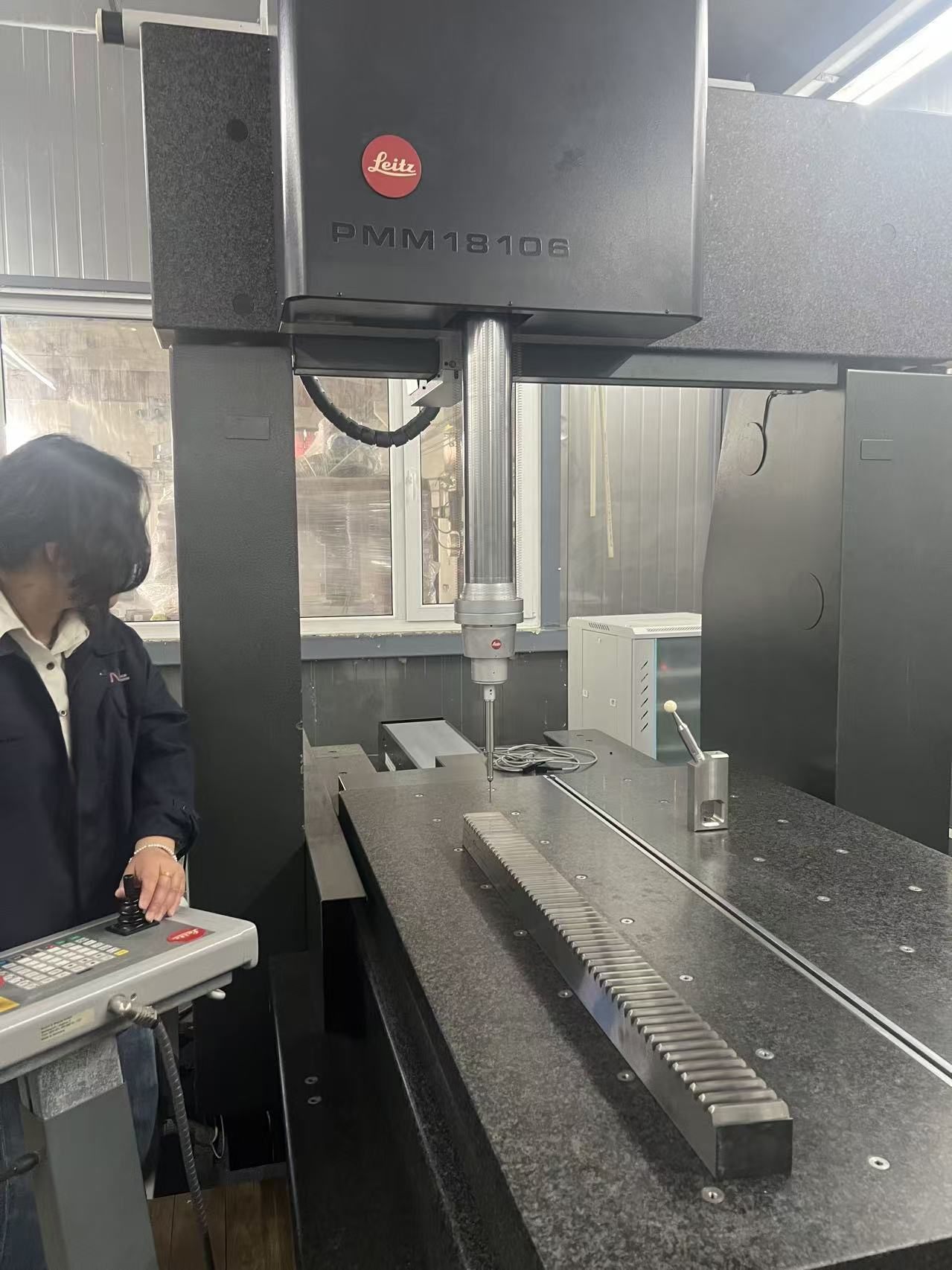

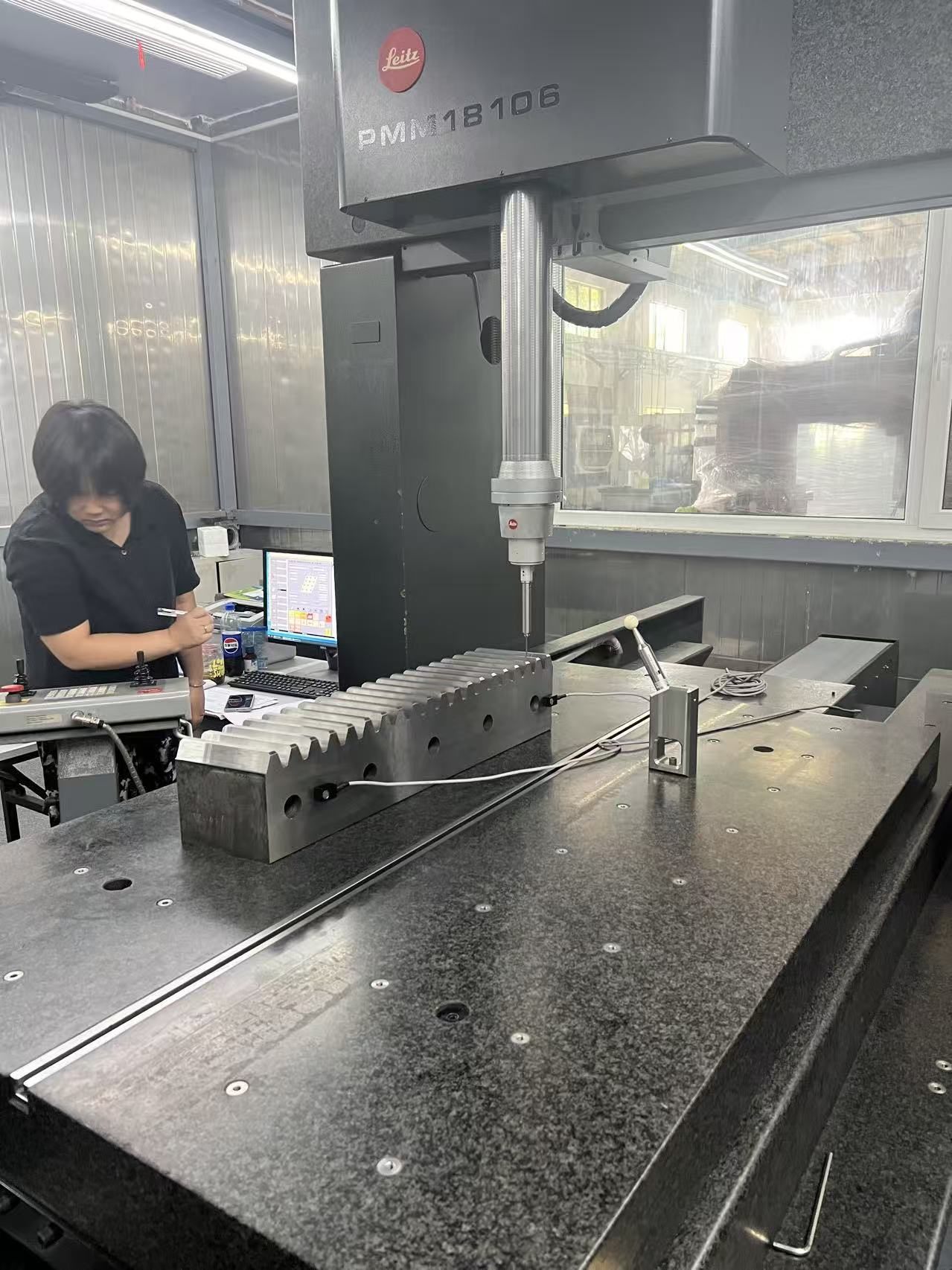

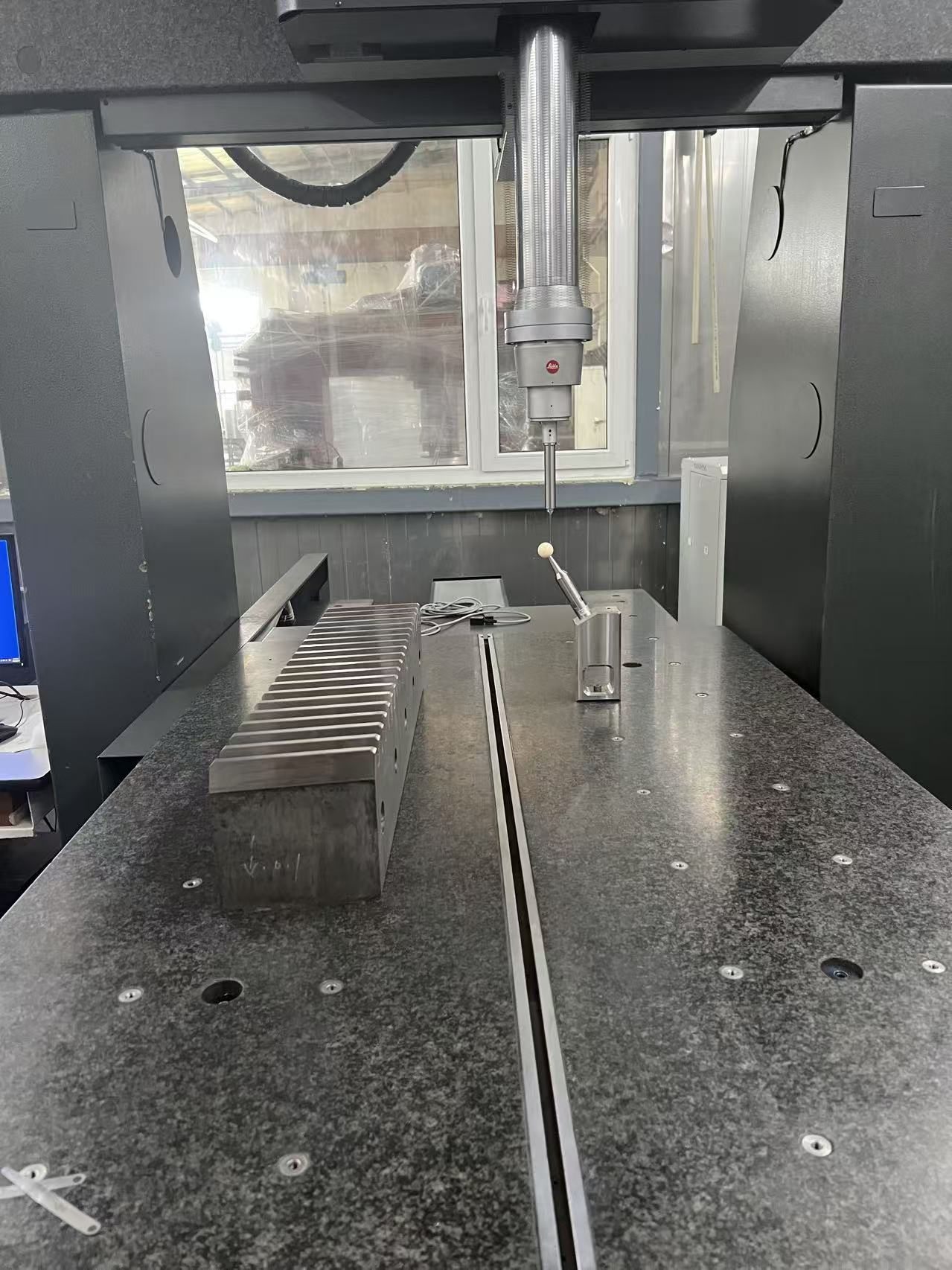

The quality plan begins at drawing review, aligning grade, datums, critical dimensions, heat treatment, hardness, straightness and inspection method.

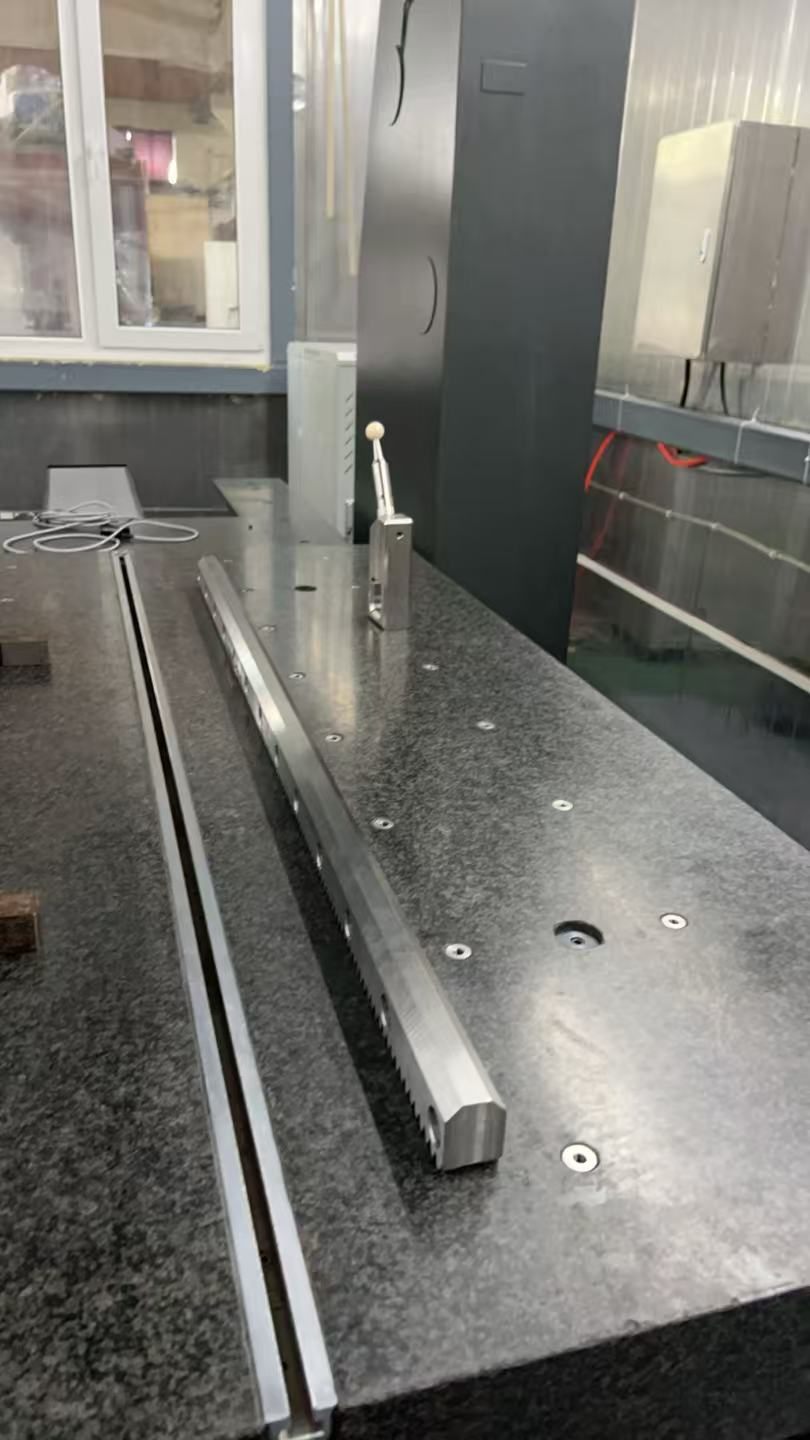

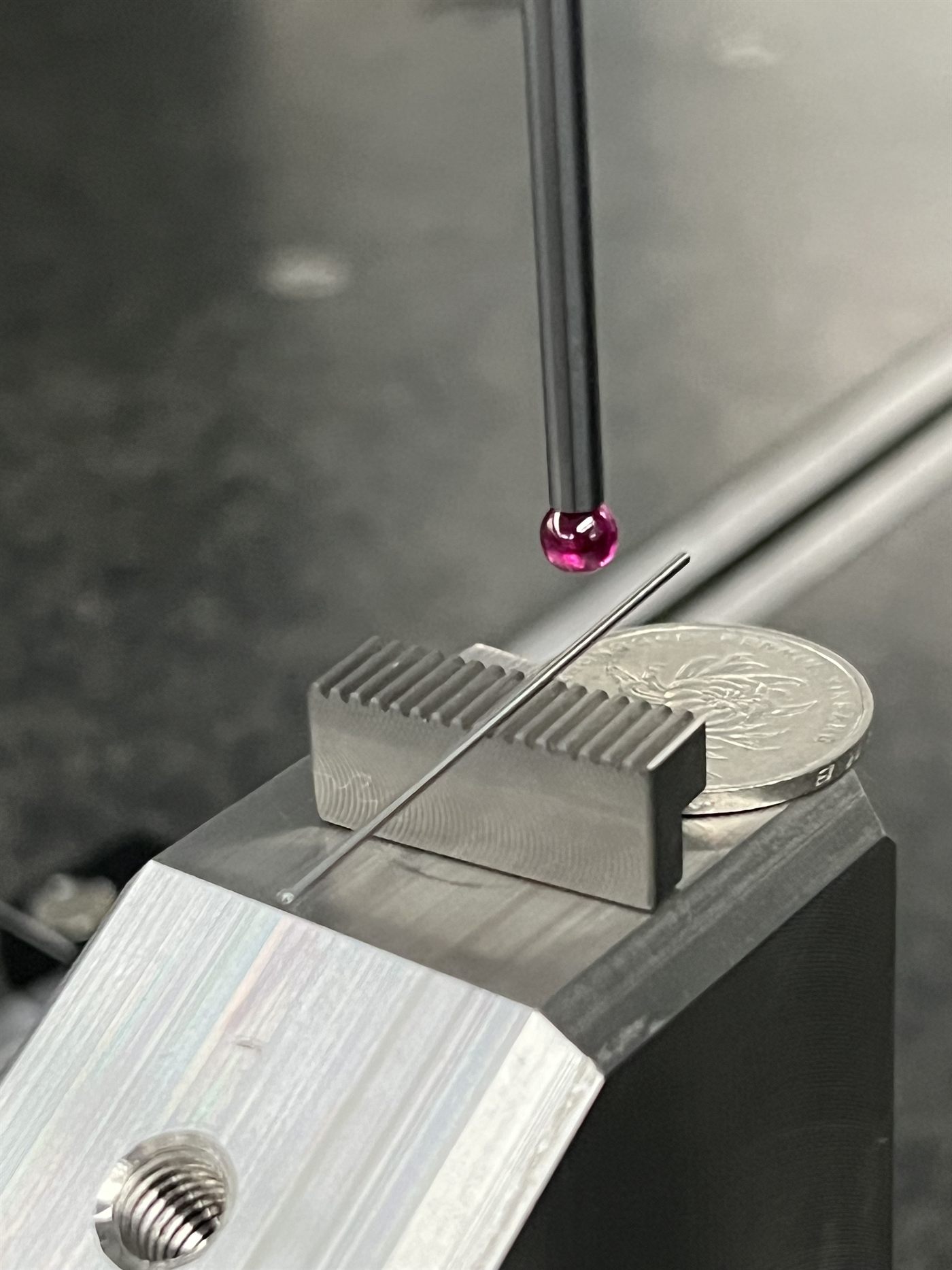

In-process checks cover blanks, holes, pitch, profile, heat-treatment distortion and grinding allowance.

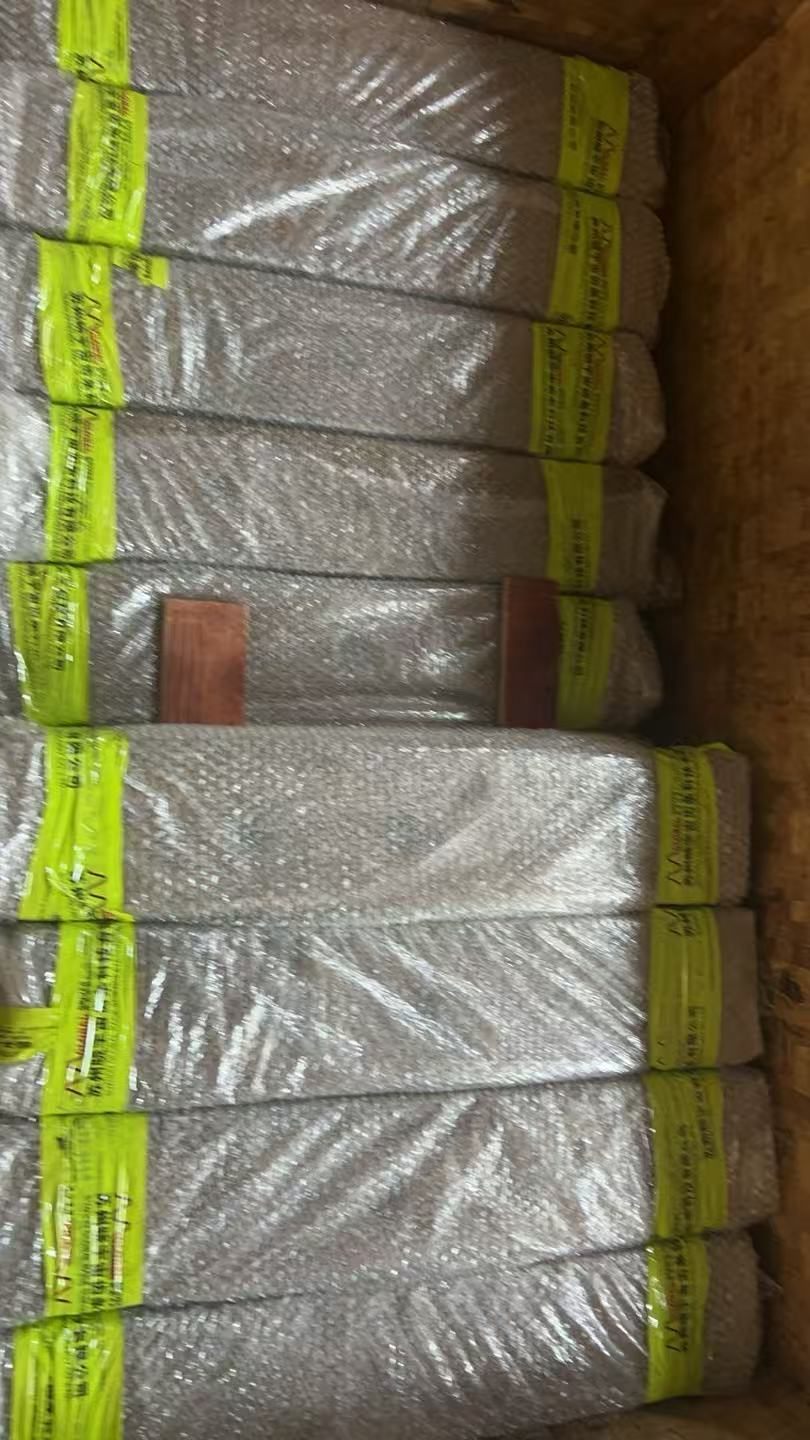

Final deliverables can include critical dimensions, pitch, profile, hardness, segment joints and matching records, followed by identification and protection checks.
Project factors
Straight / helical / long racks / rings
PRODUCT & ENGINEERING REFERENCES
Product and engineering references
Related products & solutions
All products →
GR-GR
Precision racks & gears

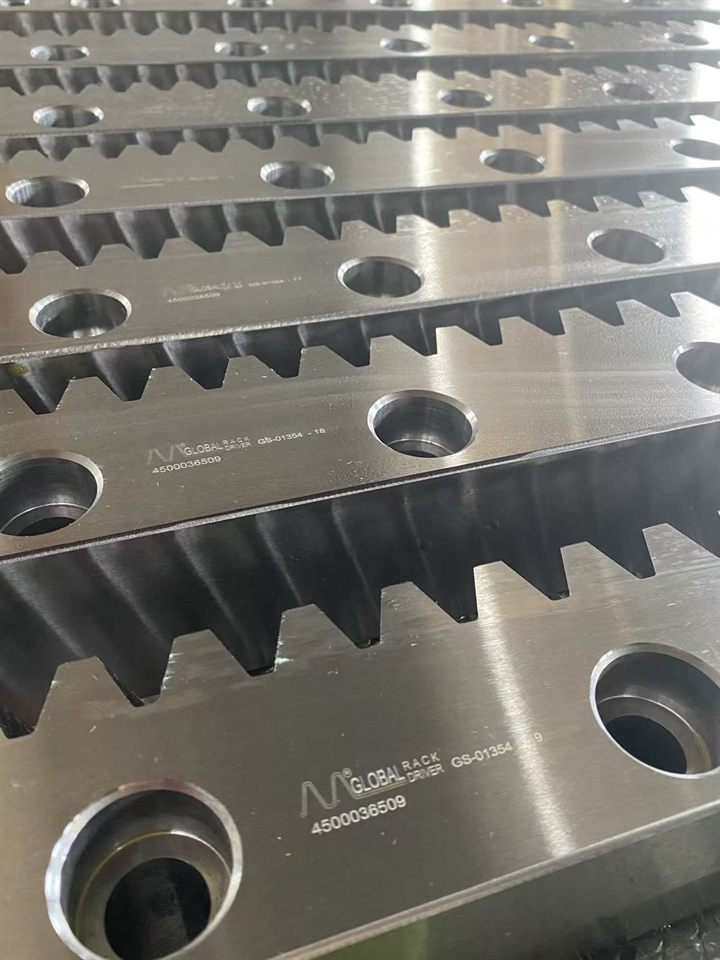

Ground gear racks
Precision-ground for high positioning accuracy, smooth motion and durable performance.
View product →Send your application and drawing to our engineering team
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
