Industrial automation and robotics
Racks, guideways and drive components for gantry robots, robot seventh axes, loading and multi-station automation.
ENGINEERING CONTEXT
Specific applications, components and selection
Integrated automation evaluates rack, guideway, pinion, structure, protection and control interface as one motion axis.
Gantry robots can be configured as single-axis, three-axis, medium-heavy and heavy-duty systems.
Robot seventh axes are sized for travel, cycle, payload, repeatability and safety envelope.
RACK & PINION IN APPLICATION
Application schematic

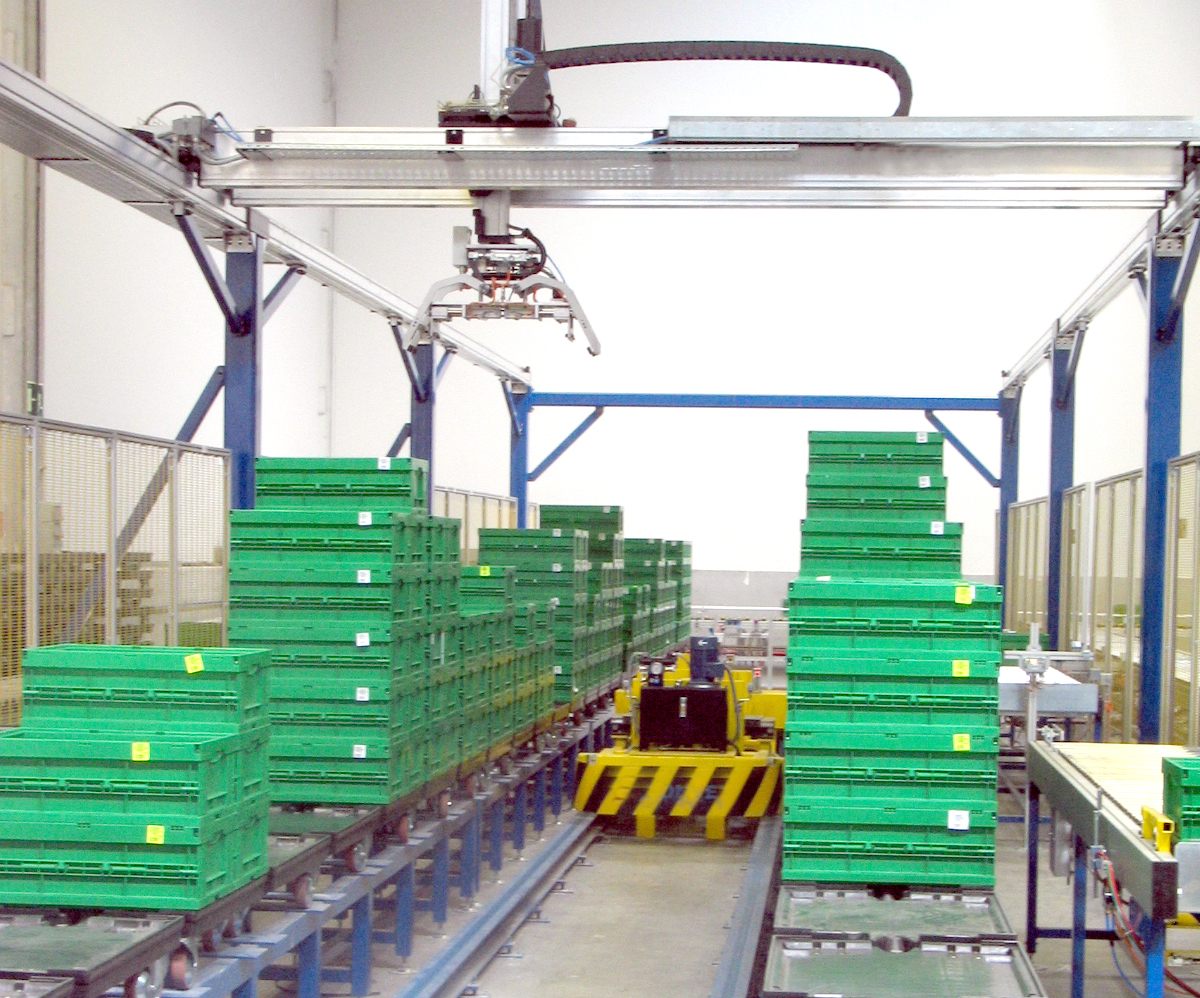

Gantry robot traverse axis

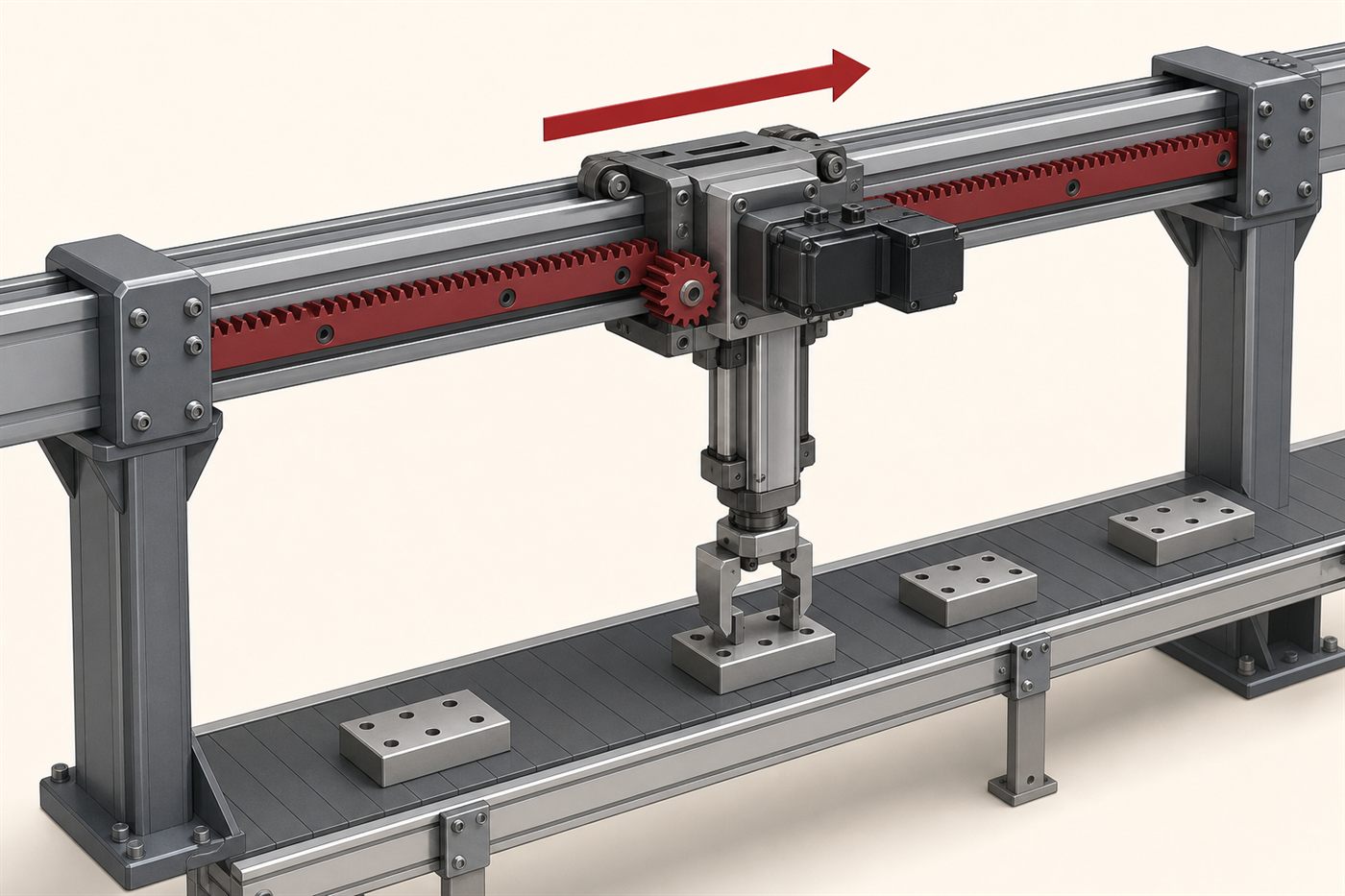

The rack is fixed along the gantry beam. A carriage-mounted servo gearbox drives the pinion, moving the vertical axis and gripper between stations. Cycle, payload, repeatability, lubrication and safety envelope are sized together.
Project factors
Rack, guideway, pinion, gantry, lubrication and protection
Cycle, stiffness, repeatability and controls
PRODUCT & ENGINEERING REFERENCES
Product and engineering references
Related products & solutions
All products →
GR-GAN
Integrated automation & robotics
Automated gantry robots
Custom gantry automation for payloads from 10 kg to 10,000 kg.
View product →
GR-R7
Integrated automation & robotics

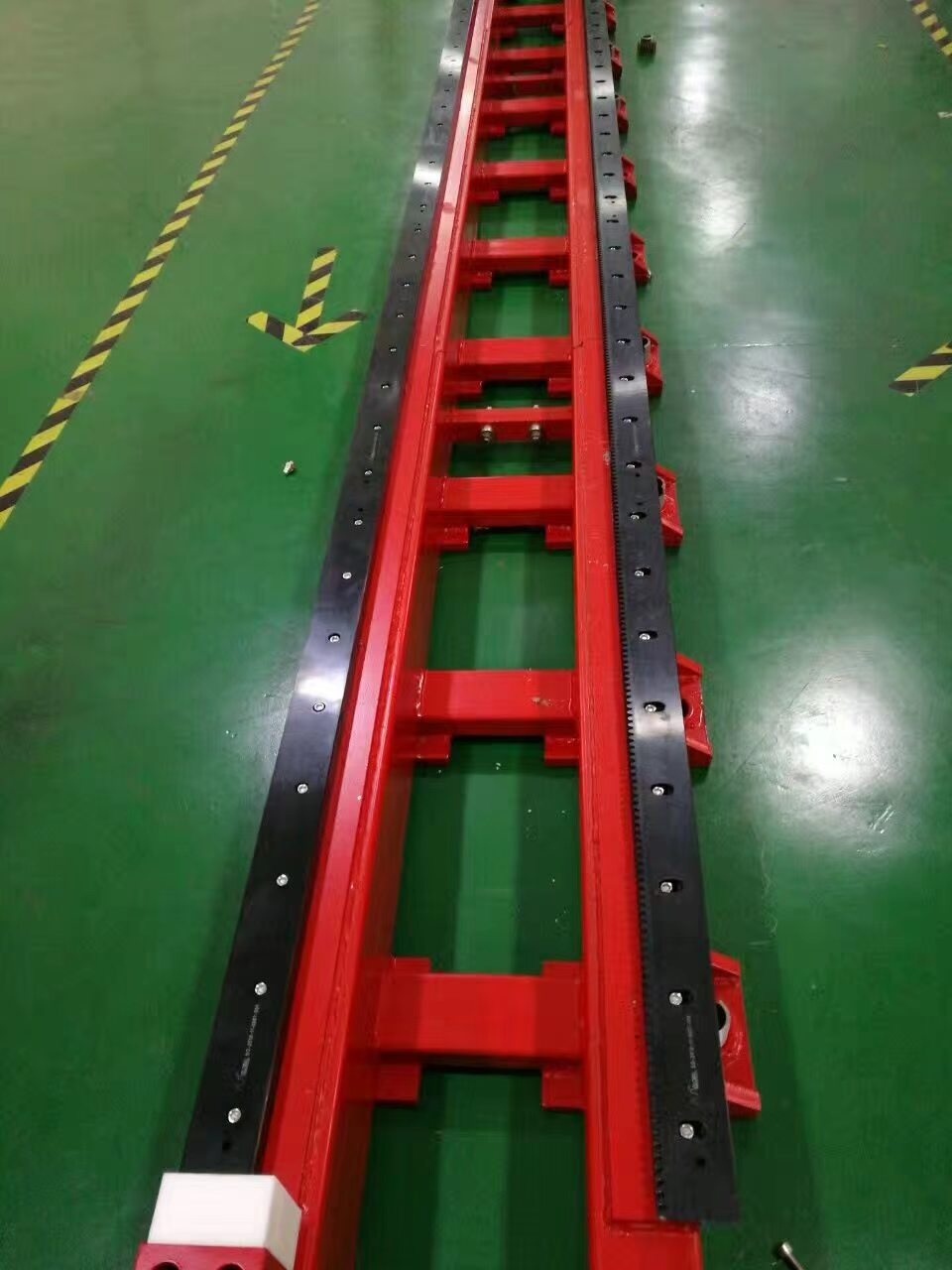

Robot seventh-axis track
High-speed, high-stiffness track extending the working envelope of industrial robots.
View product →Send your application and drawing to our engineering team
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
