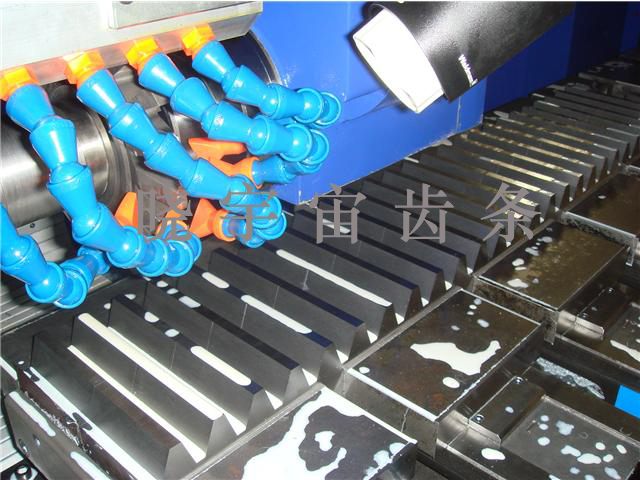

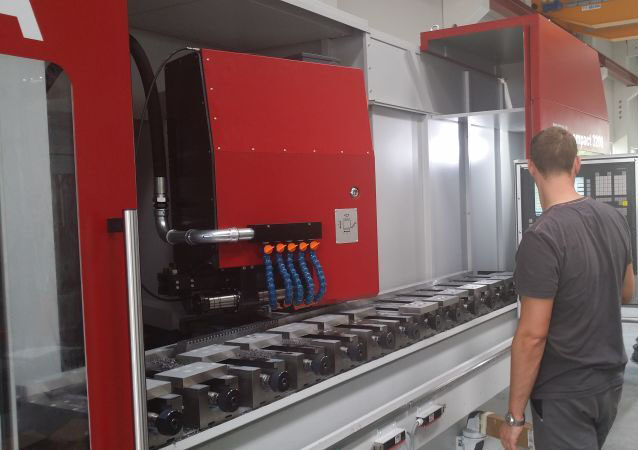

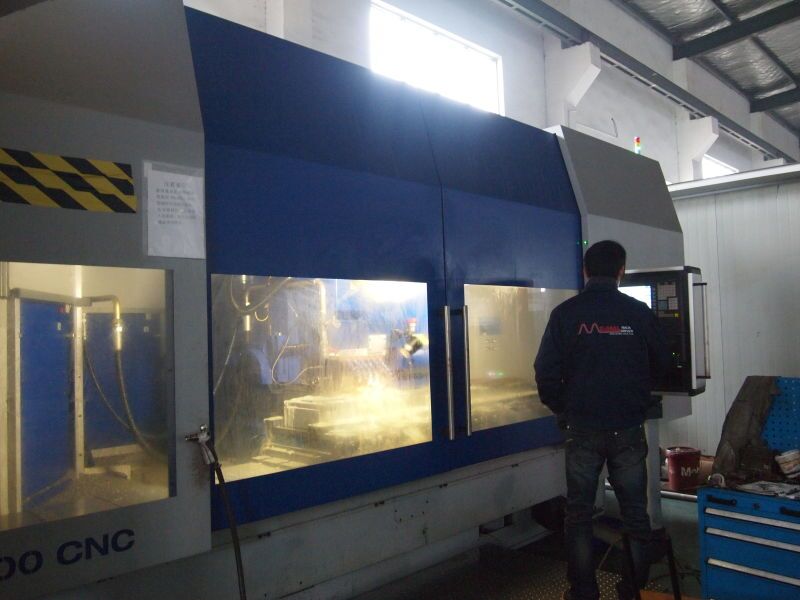

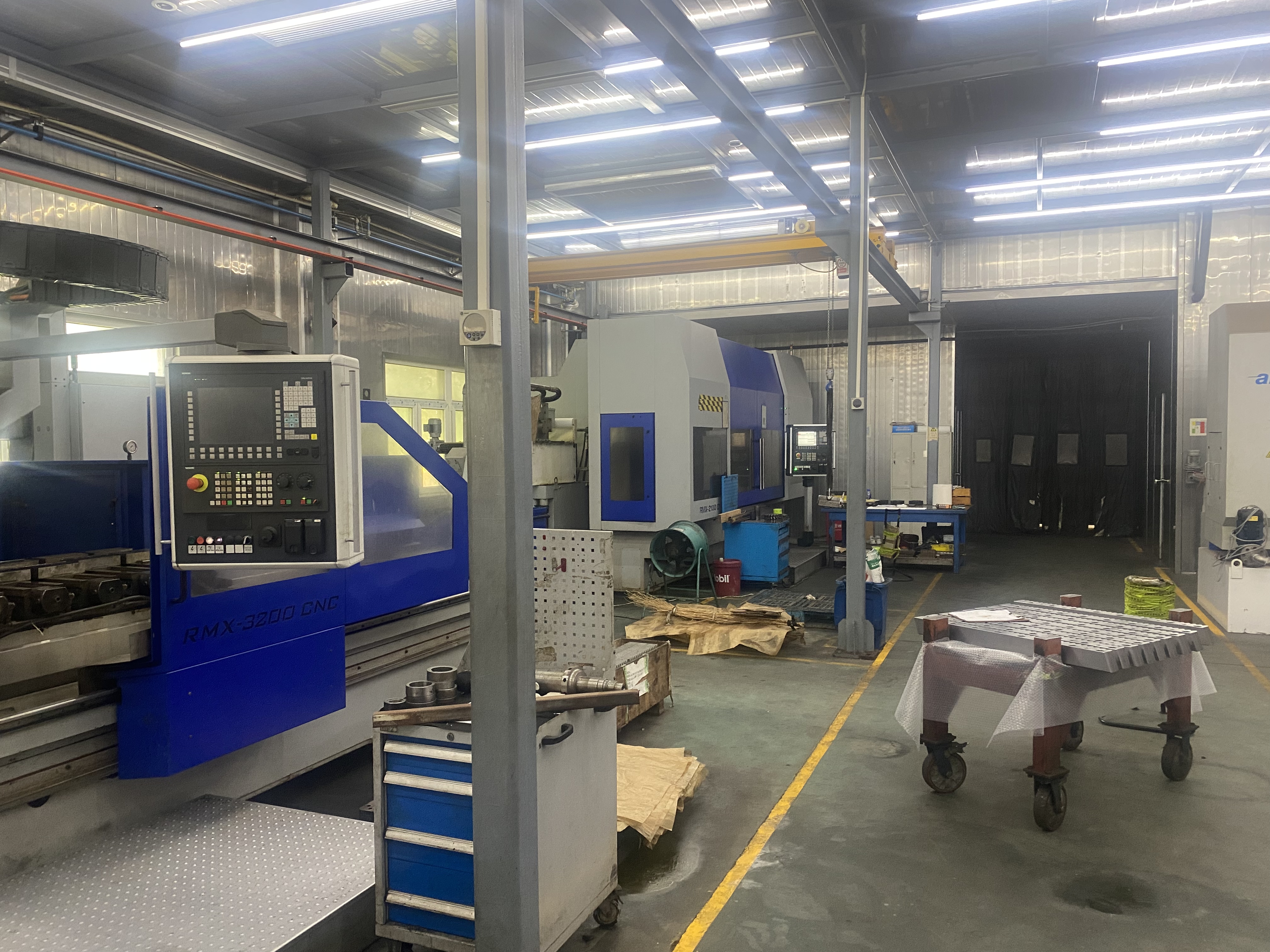

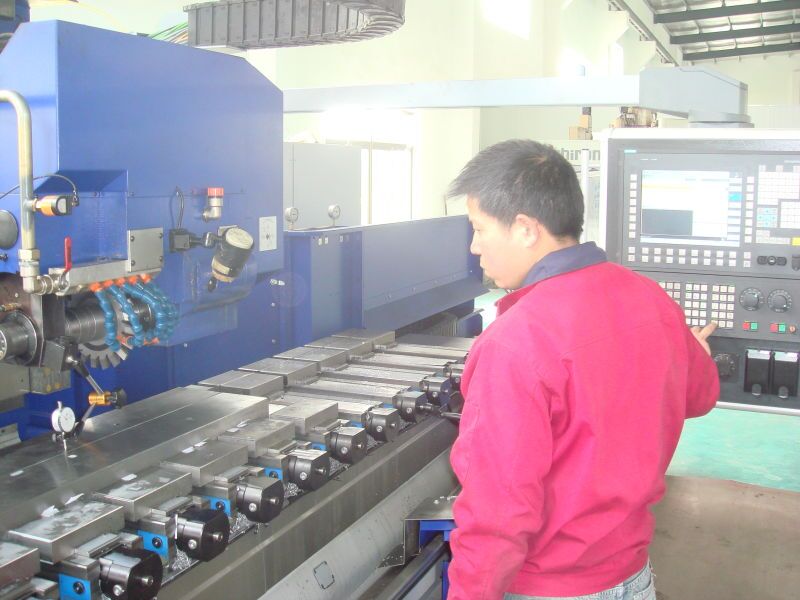

Rack-tooth milling and profiling

Milling, shaping and indexing are selected for module, profile, accuracy and volume.

ENGINEERING CONTEXT

Manufacturing capability, equipment and process

Tooling is matched to rack module and aligned to the datum and tooth form.

Consistent indexing governs cumulative pitch quality along long racks.

Grinding allowance is reserved according to final accuracy and heat-treatment route.
