INDUSTRIES & SPECIFIC APPLICATIONS

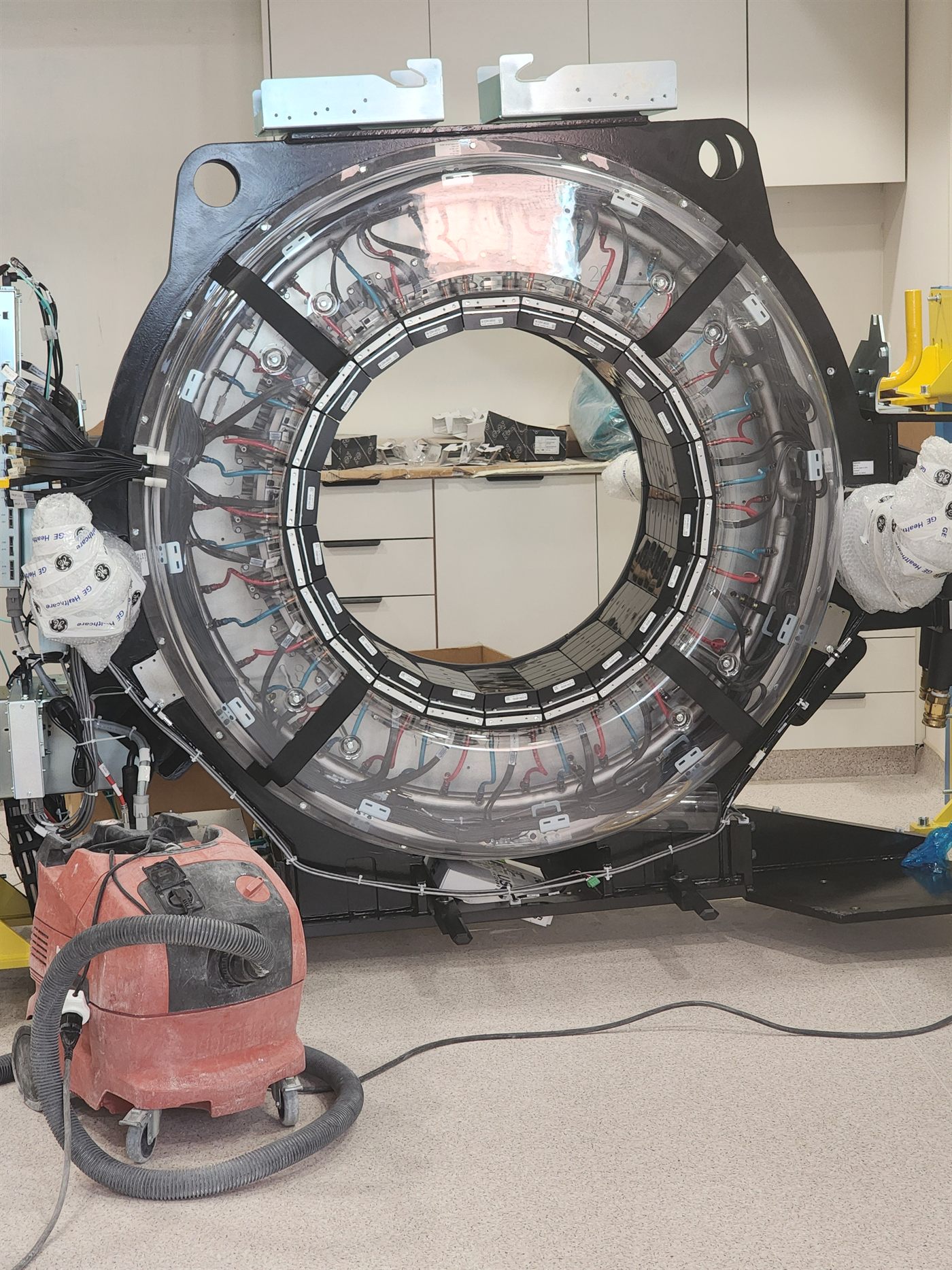

Medical equipment and clean precision motion
Low-noise roller racks, precision pinions and compact guides for imaging, assisted-procedure, inspection and laboratory automation.
ENGINEERING CONTEXT
Specific applications, components and selection
Medical and laboratory equipment often prioritise low noise and particles, smooth motion, repeatability and compact installation.
Rolling engagement suits long-travel axes sensitive to backlash, vibration and maintenance.
Material, surface, protection, cleaning and regulatory conformity follow the design requirements and validation results of the finished device.
RACK & PINION IN APPLICATION
Application schematic

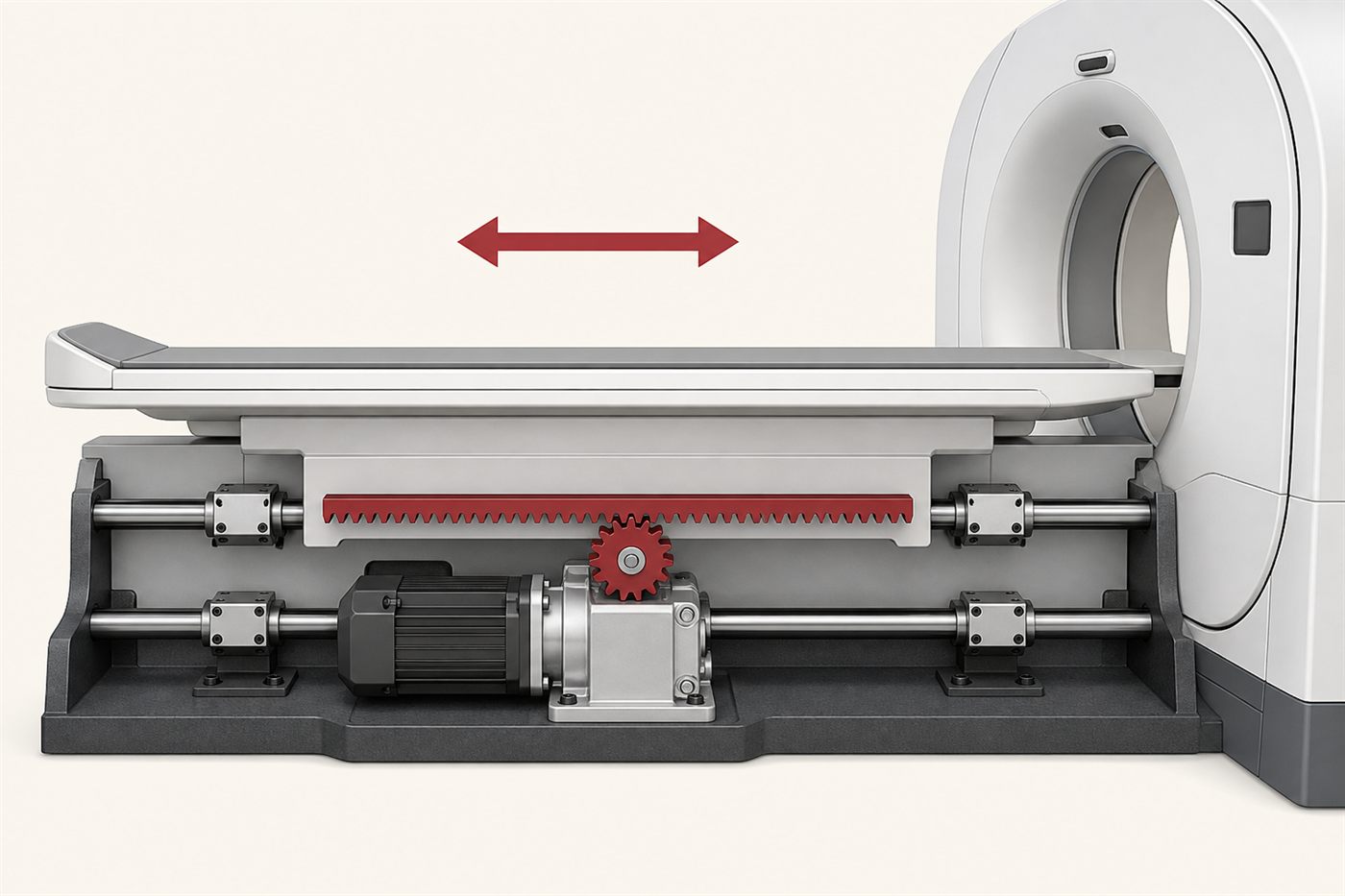

Imaging table and adjustment axes
A precision rack is mounted beneath the patient-table carriage. A base-mounted servo motor and gearbox drive the pinion, moving the table smoothly into and out of the imaging system. Noise, cleanliness, positioning and regulatory requirements are validated at equipment level.
Project factors

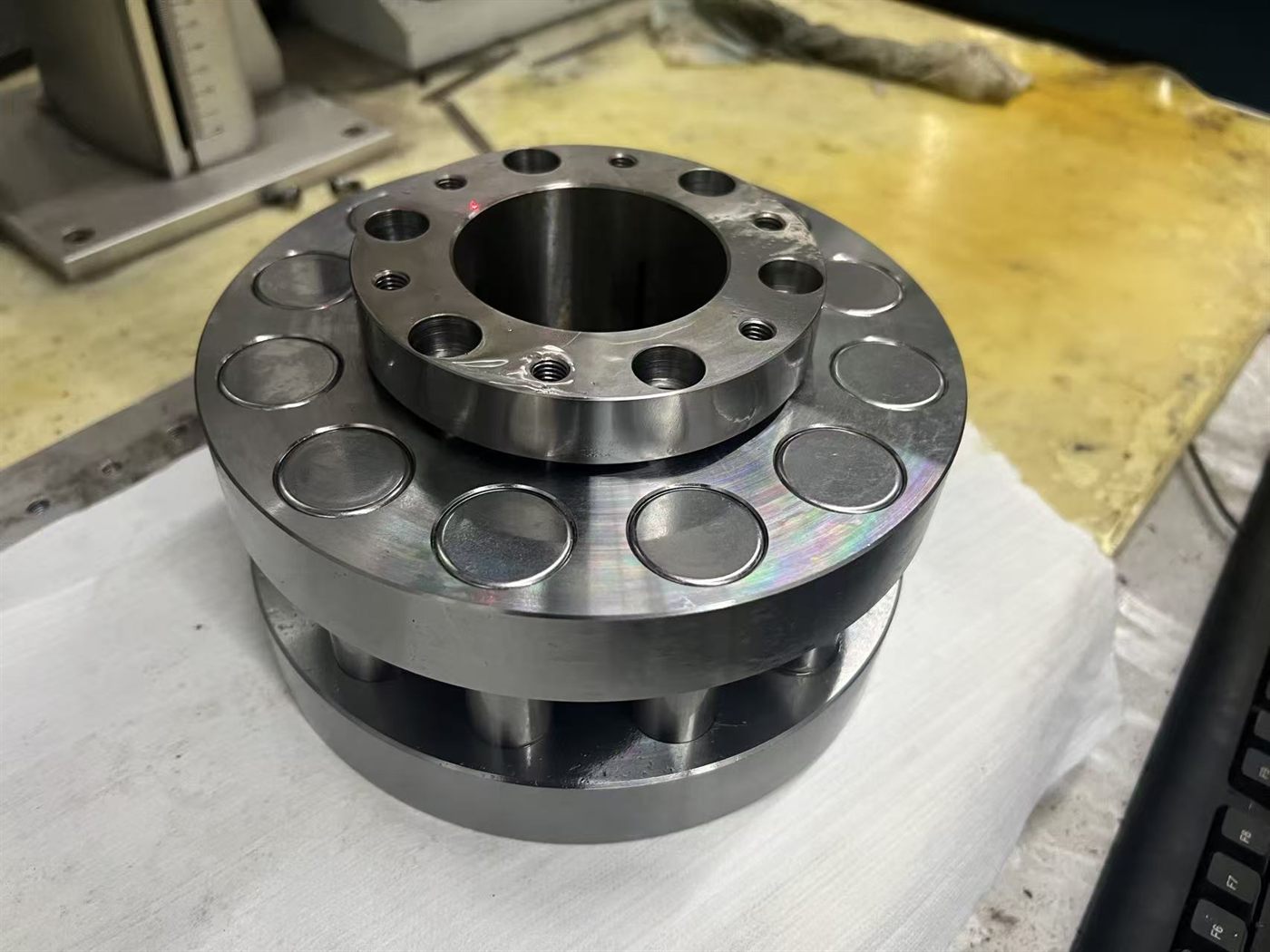

Roller rack, precision pinion and compact guideway
Noise, particles, repeatability and cleaning
PRODUCT & ENGINEERING REFERENCES
Product and engineering references
Related products & solutions
All products →
GR-ZB
Roller racks
Zero-backlash gear racks
For high-stiffness, high-response precision drives.
View product →
GR-RG
Precision guideways & systems
High-precision rectangular guideways
Linear guide components produced by precision flat and profile grinding.
View product →Send your application and drawing to our engineering team
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
