Typical construction | Final section and dimensions follow the approved drawing
GR-WG / Precision racks & gears

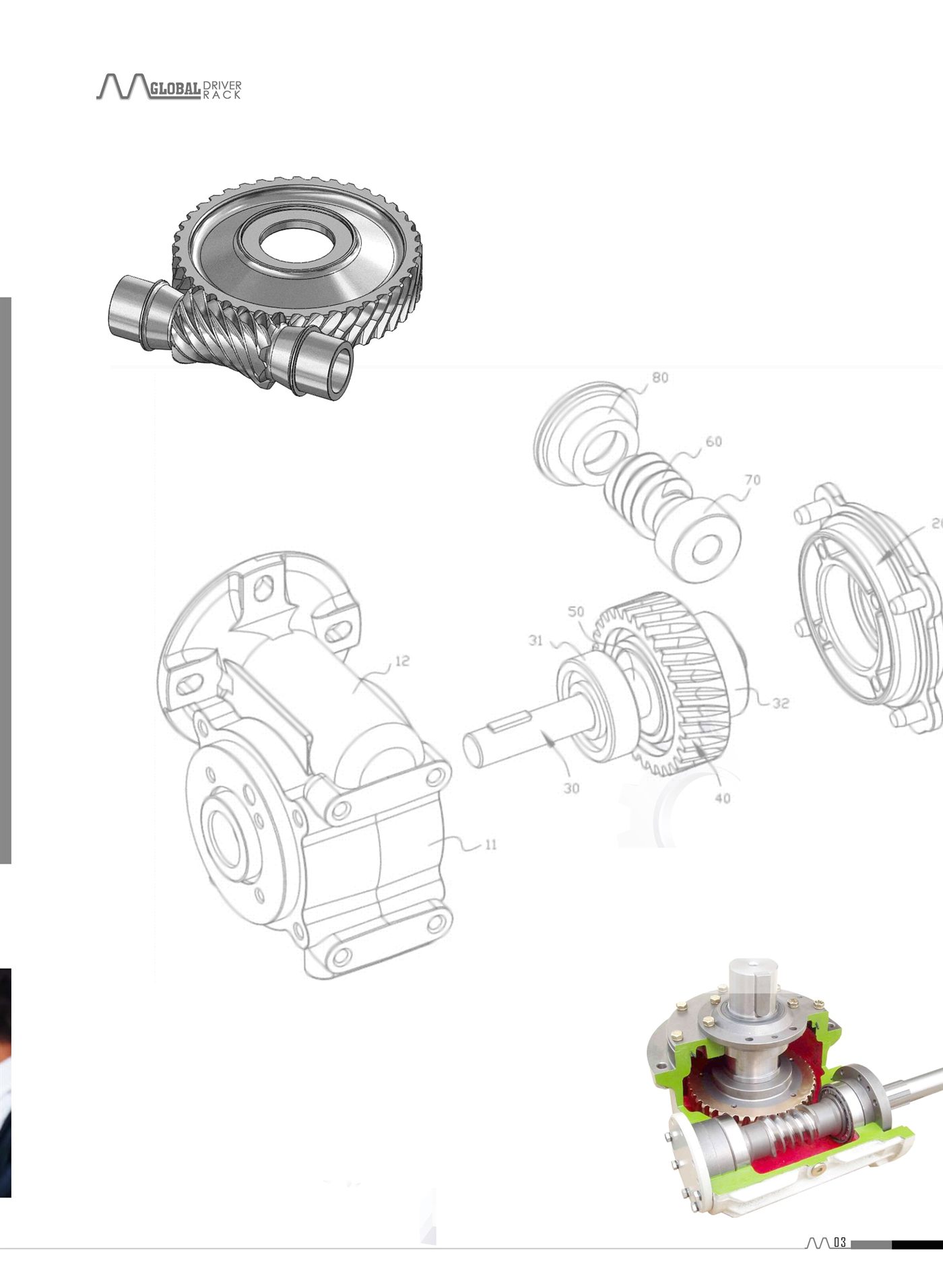

Compact worm reduction gearbox with multiple ratios, output configurations and motor-flange options.
PRODUCT INFORMATION
The available catalogue covers 32 mm and 40 mm centre distances plus foot, output-flange and motor-flange configurations. Selection requires ratio, input speed, output torque, mounting orientation and motor interface.
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
Industrial automation and robotics
Worm gearboxes can serve small conveyors, adjustment and positioning mechanisms. Select ratio, torque, efficiency, temperature rise and duty, and assess braking separately.
Explore this industry
Custom equipment and special motion
Drawing-based sections, holes, teeth and end connections suit constrained fixtures, transfer or rotary mechanisms. Confirm mating parts and assembly datums first.
Explore this industryTECHNICAL DATA

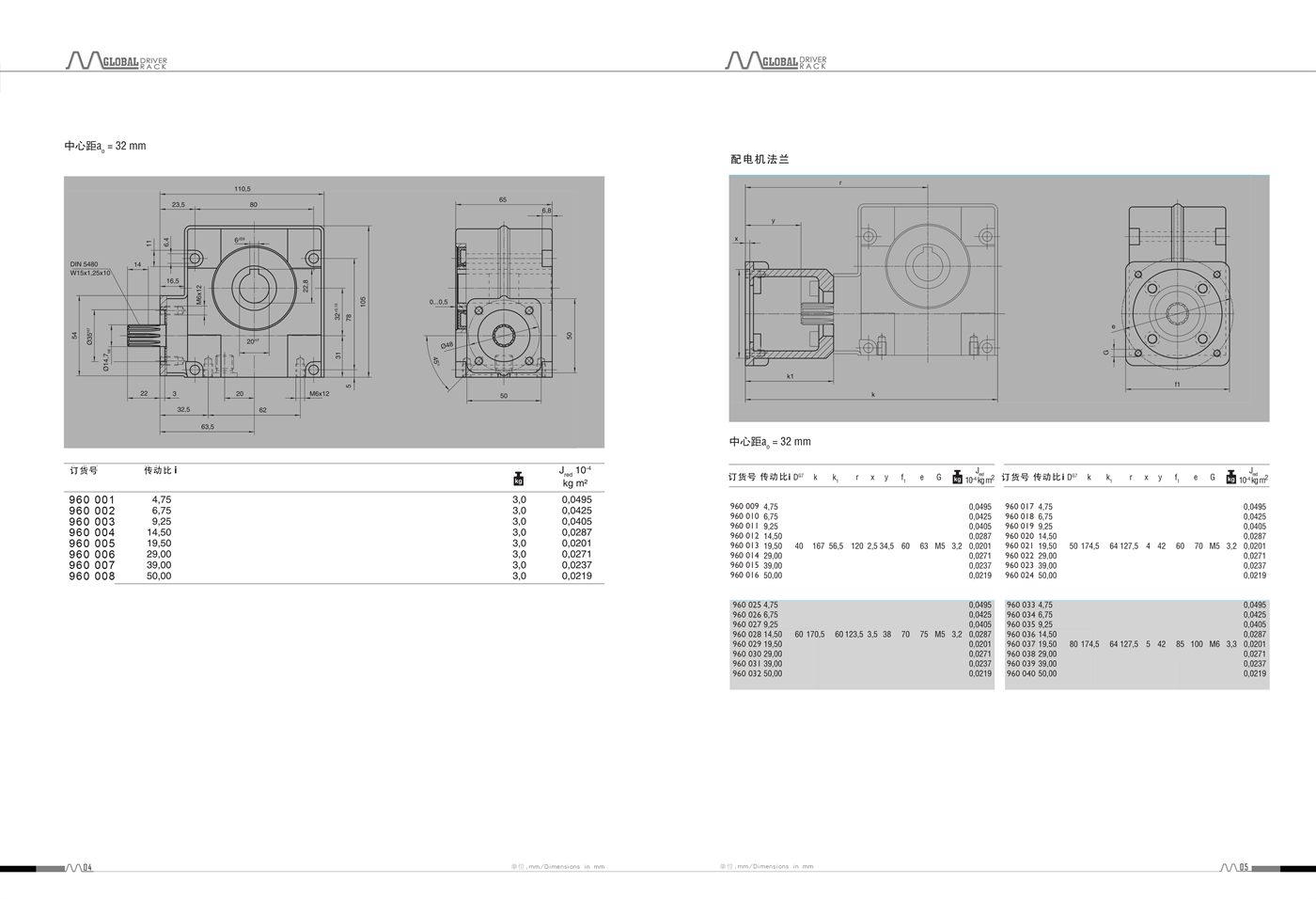

| Centre distance | 32 mm / 40 mm (additional sizes by catalogue) |
|---|---|
| Example ratios | 4.75 / 6.75 / 9.25 / 14.5 / 19.5 / 29 / 39 / 50 |
| Mounting | Foot, output flange and motor flange |
| Selection inputs | Speed, torque, ratio, duty and mounting orientation |
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.
CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
