GR-HG / Precision racks & gears
Helical gear series

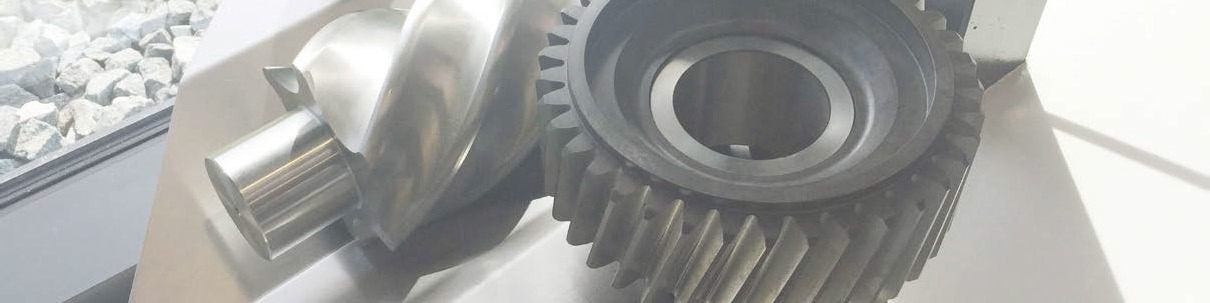

Matching helical gears for helical racks, high speed and reduced noise.
- Product category
- Precision racks & gears
- Product code
- GR-HG
- ENGINEERING
- Customised to drawing and operating conditions
PRODUCT INFORMATION
Product overview
Helix angle, hand, module, tooth count and shaft interface are matched to the rack.
INDUSTRIES & APPLICATIONS
Industries and specific applications
Explore the product’s role in equipment and the operating conditions to check during design.
Machine tools and long-travel equipment
Matched drives for rack-based linear axes
Matched pinions convert motor rotation to rack motion. Check module, pressure angle, face width, bore and gearbox interface, then verify torque and speed.
Explore this industryTECHNICAL DATA
Technical data & configuration
| Tooth form | Helical gear |
|---|---|
| Hand | Left / right |
| Interface | Bore, keyway and flange to drawing |
| Application | High-speed, low-noise rack drives |
Product, engineering and application references
PRODUCTION & INSPECTION
From production to inspection
Equipment, process control and inspection records safeguard consistency from material through delivery.
Surface grinding
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Rack-tooth milling
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Induction hardening
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
Five-face machining
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Rack-tooth grinding
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.
Precision inspection
CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Send your application and drawing to our engineering team
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
