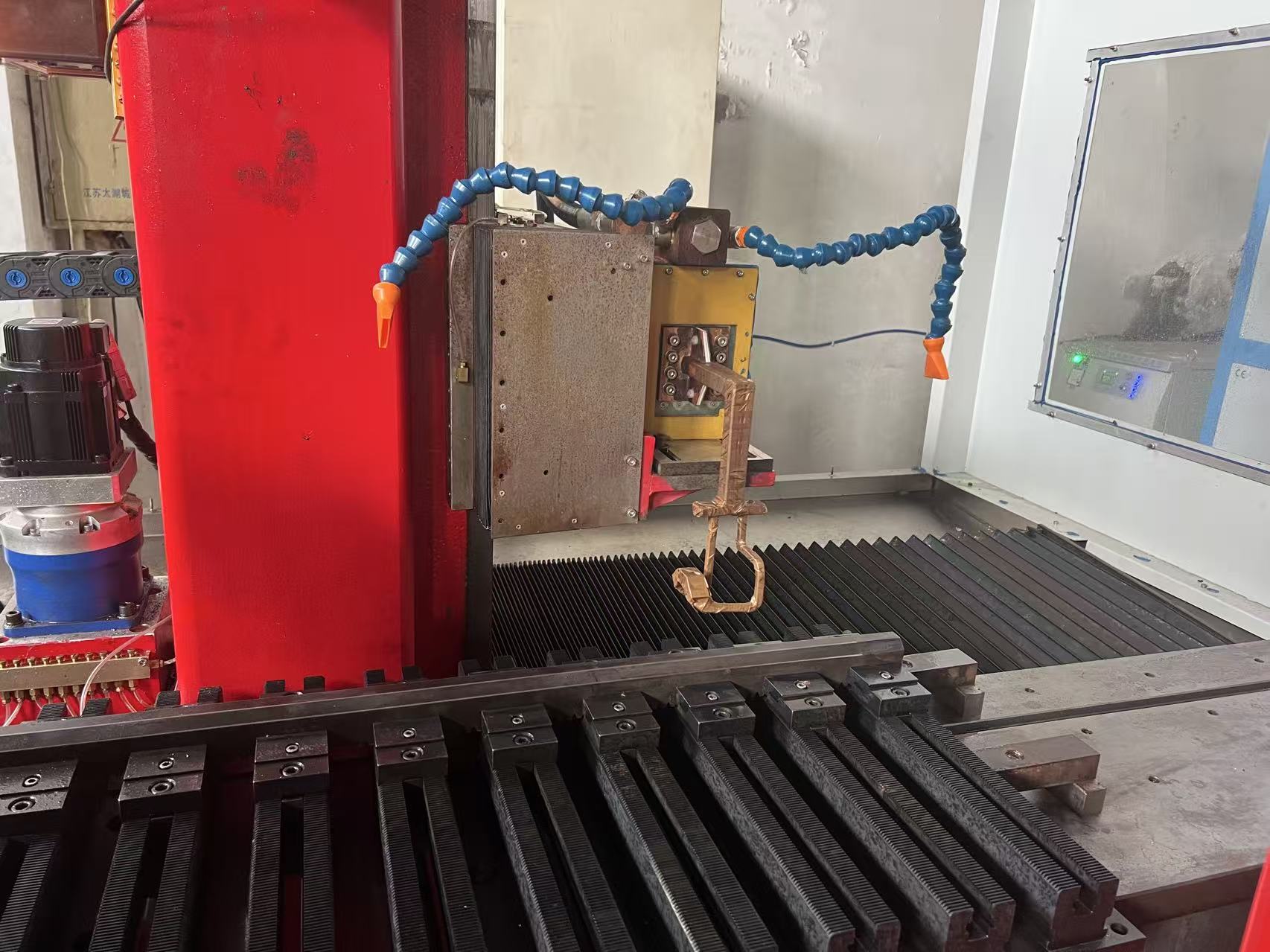

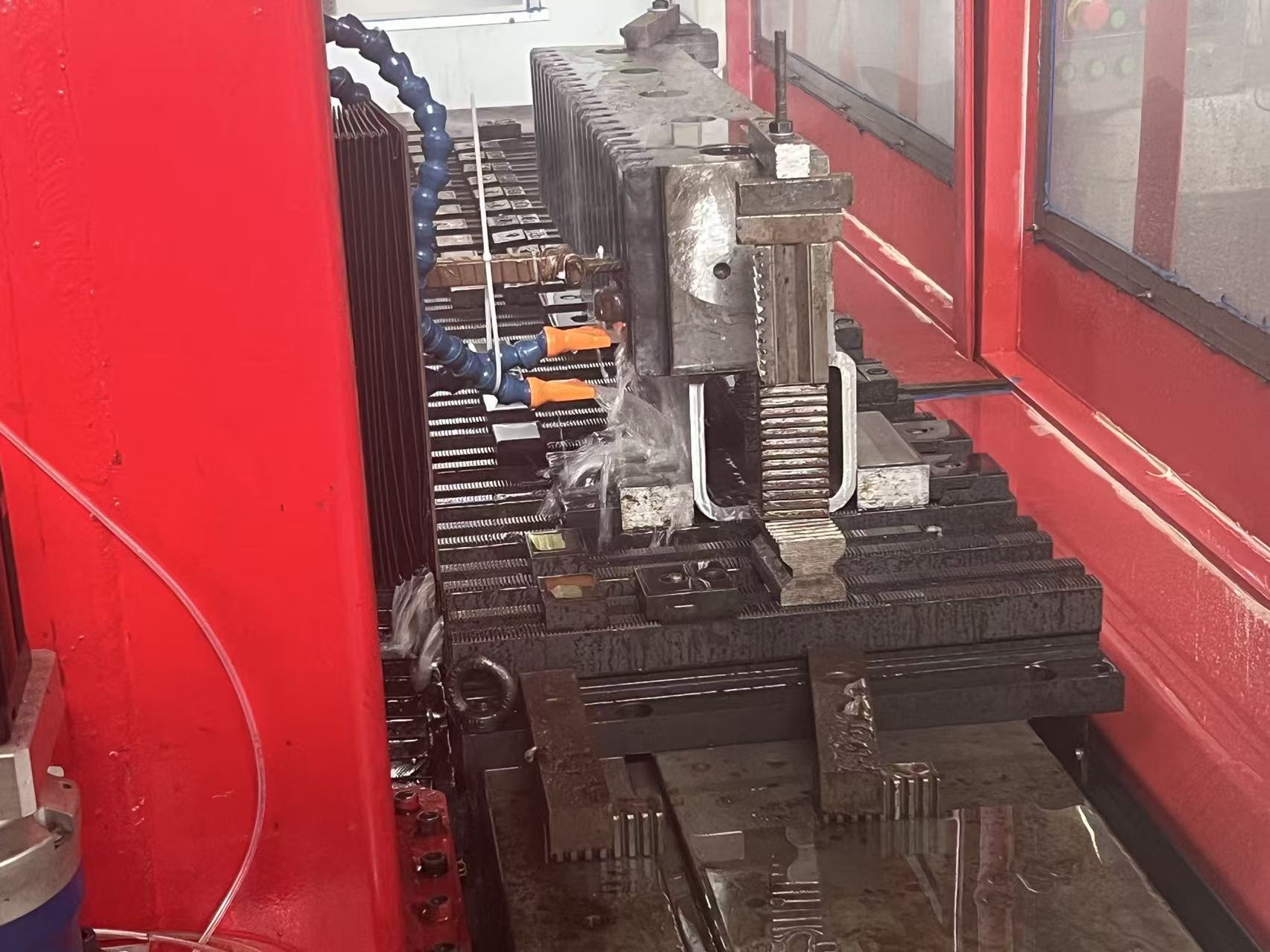

GR-HM / Rack hardening equipment
CNC induction-hardening equipment for racks, guideways and long parts, customisable to the workpiece.
PRODUCT INFORMATION
Scanning motion, inductor, quench spray, recipes and monitoring can be integrated; travel and fixtures follow the part.
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
Machine tools and long-travel equipment
Scanning hardening in rack and guideway manufacturing requires coil, feed, cooling and clamping matched to material, section and effective length. Inspect hardness and distortion.
Explore this industry
Heavy equipment and large machinery
Configure hardening for large-section racks and guideways used in heavy equipment. Check effective length, section changes, fixturing, supports and cooling, then assess distortion and finishing allowance.
Explore this industryTECHNICAL DATA
| Workpieces | Racks, guideways and long parts |
|---|---|
| Process | Scanning induction hardening |
| Control | CNC recipes and process monitoring |
| Customisation | Travel, inductor and fixtures |
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.
CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
