GR-SR / Standard gear racks
Reliable, cost-efficient gear-rack solutions for industrial applications.
PRODUCT INFORMATION
For general machinery and drive technology.
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
Industrial automation and robotics
Linear transfer of fixture pallets in packaging and assembly lines uses sectional racks for extended travel. Confirm duty cycle, positioning requirements and lubrication access.
Explore this industry
Intralogistics and telescopic handling
For travel or lifting mechanisms in automated warehouses. Check rack strength, pinions and supports under loaded/unloaded travel, acceleration and emergency braking.
Explore this industryTECHNICAL DATA
| Manufacturing process | Milling, shaping, hardening or precision grinding according to drawing and accuracy |
|---|---|
| Module & tooth form | Calculated from load, speed, accuracy and mating pinion |
| Length & joining | Single or matched sections according to project travel |
| Material & heat treatment | Selected for operating conditions, service life and flank hardness |
| Engineering support | Calculation, selection, drawing review and lead-time assessment |
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.

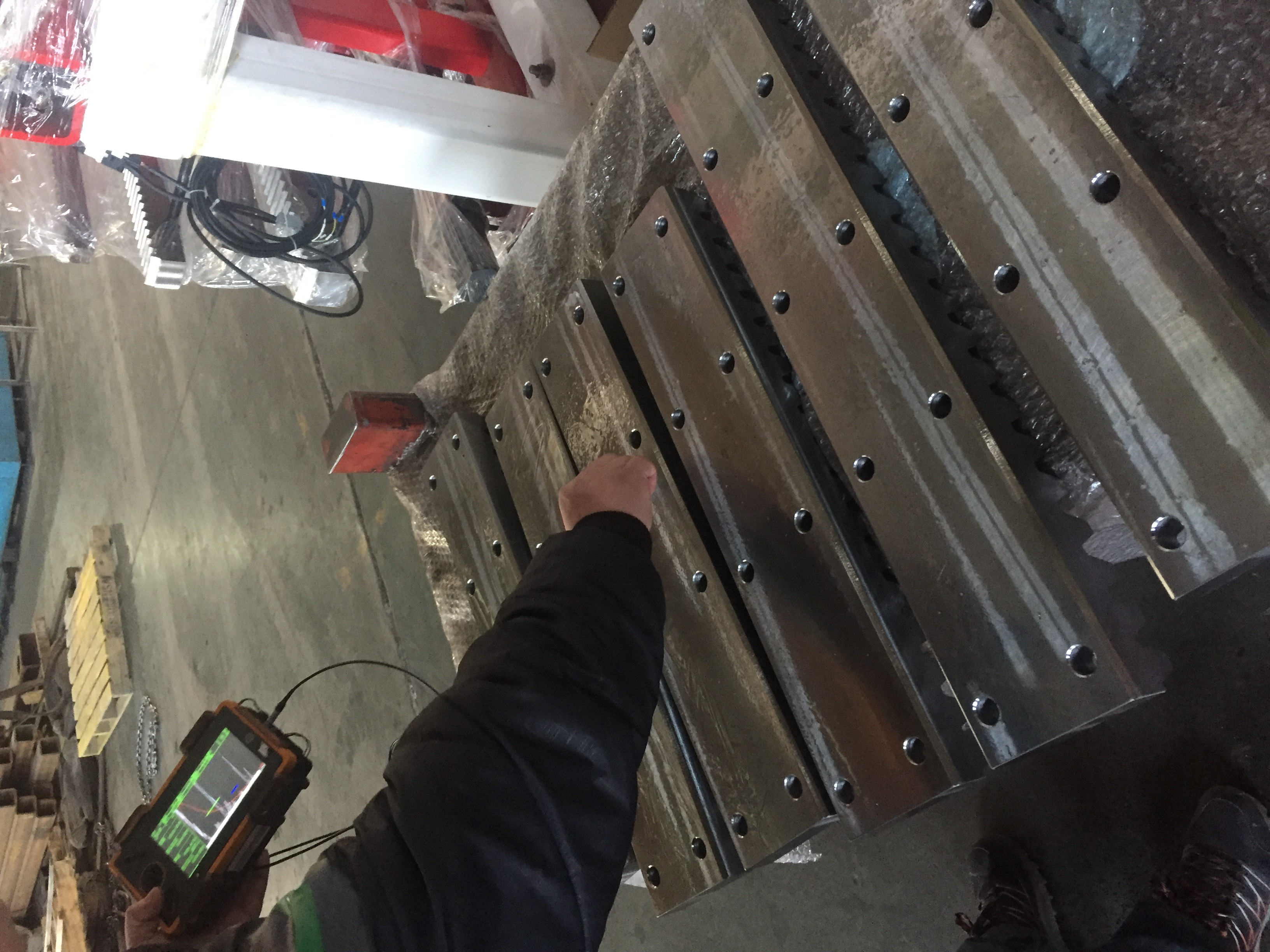

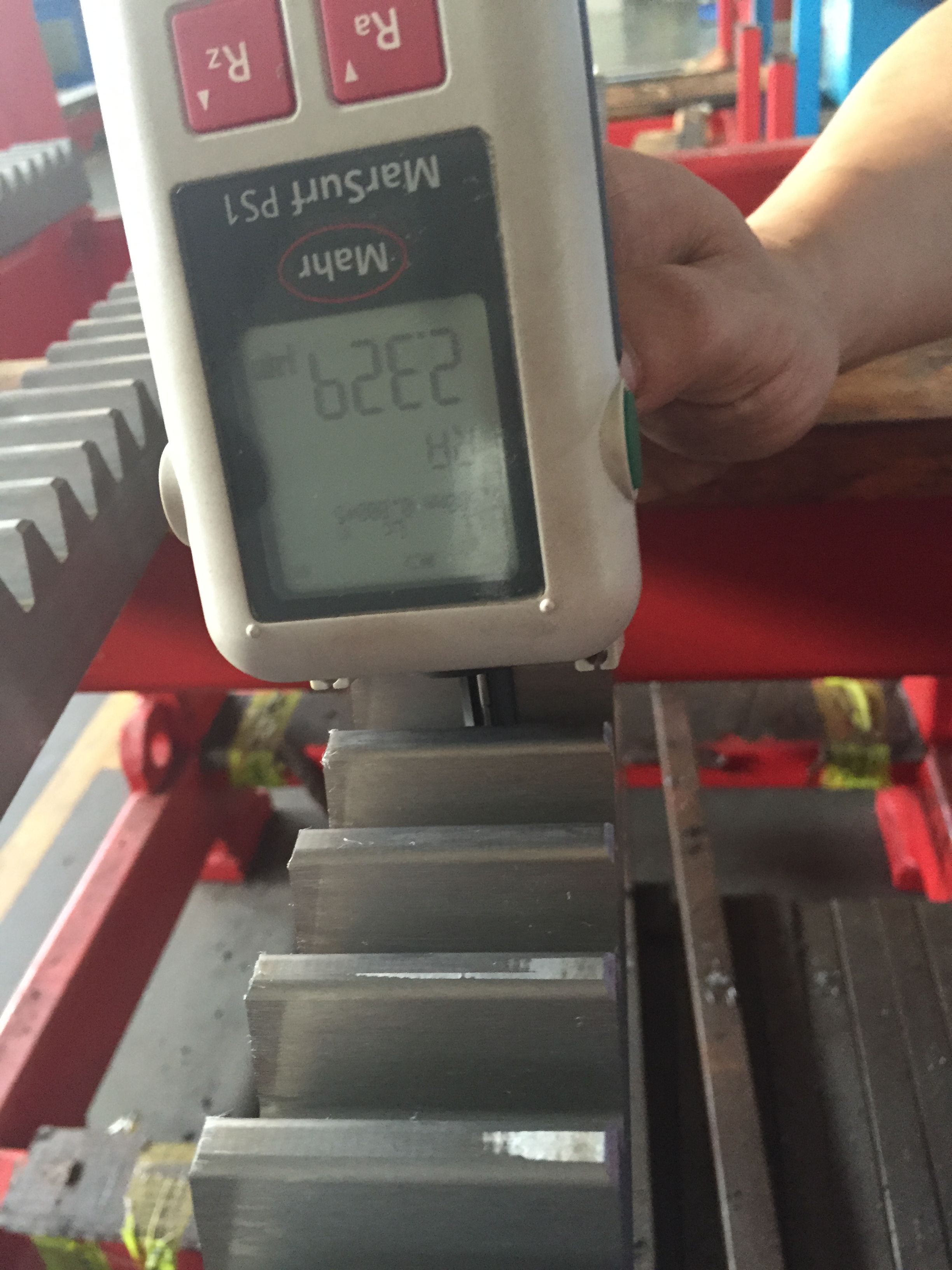

CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
