Telescopic storage and retrieval
Mounted on stacker cranes or shuttles to place and retrieve loads. Select for extension, storage depth, load centre and deflection at full payload.
Explore this industry
Product solution image | Final configuration follows the selection review

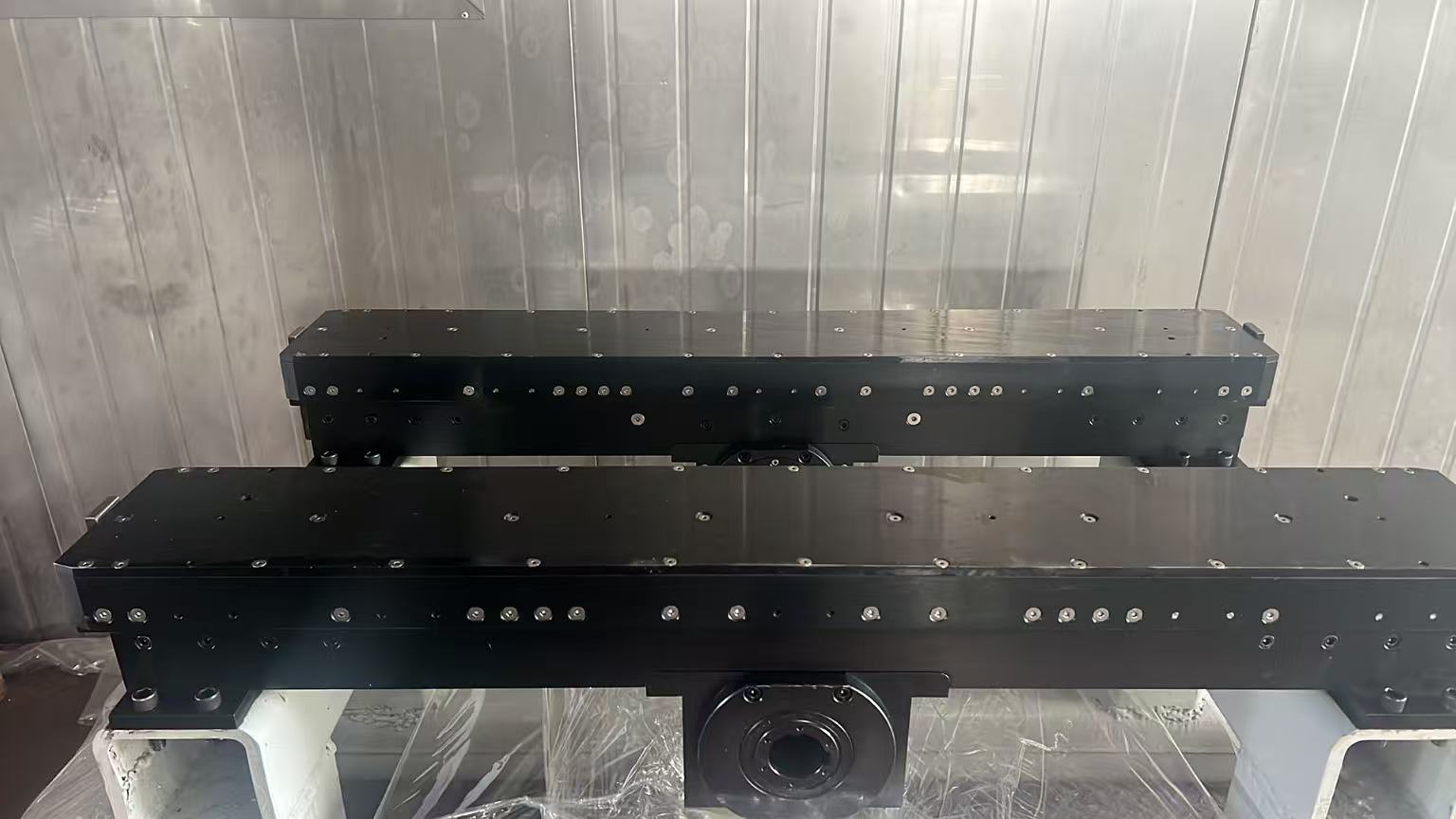

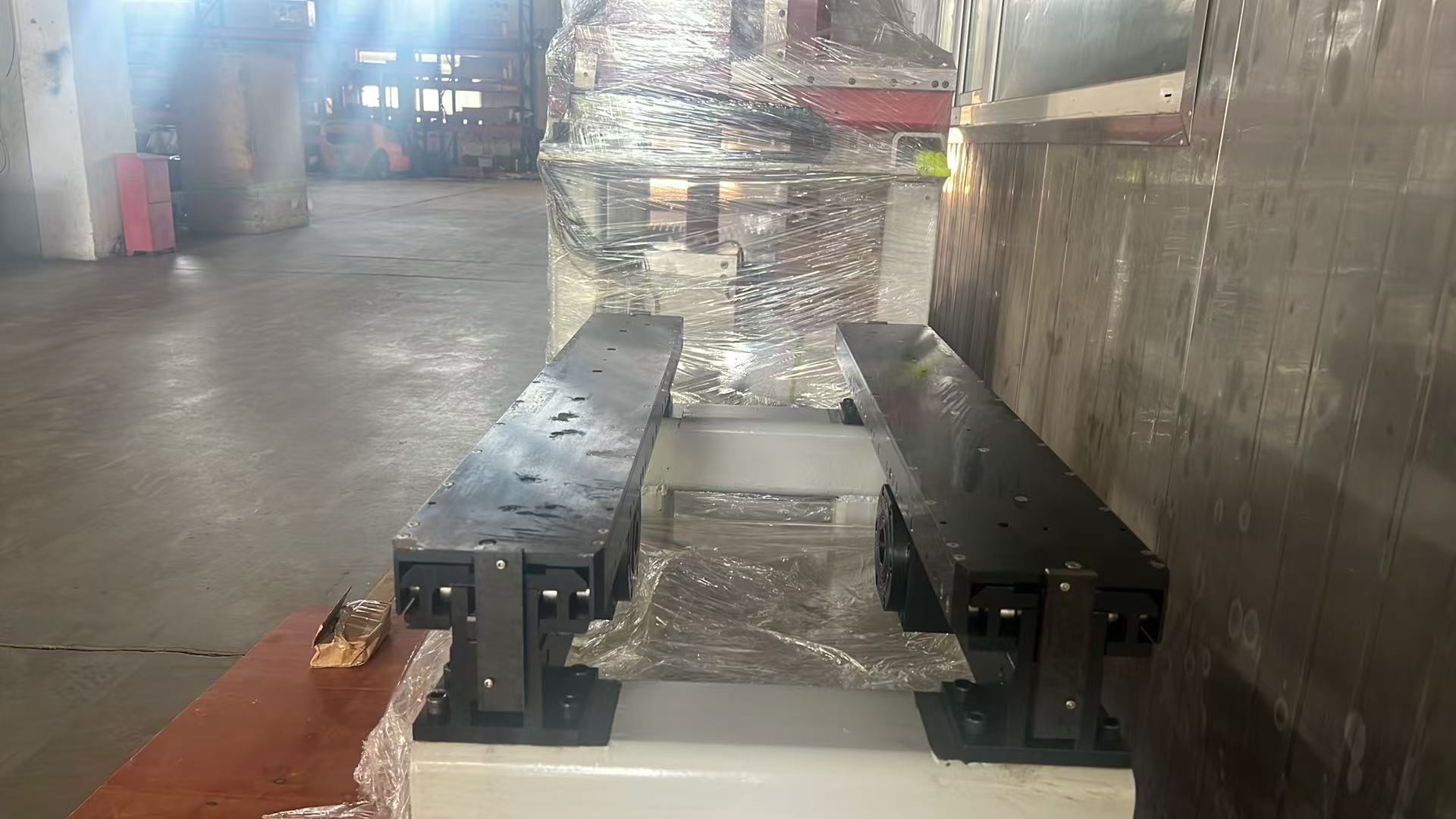

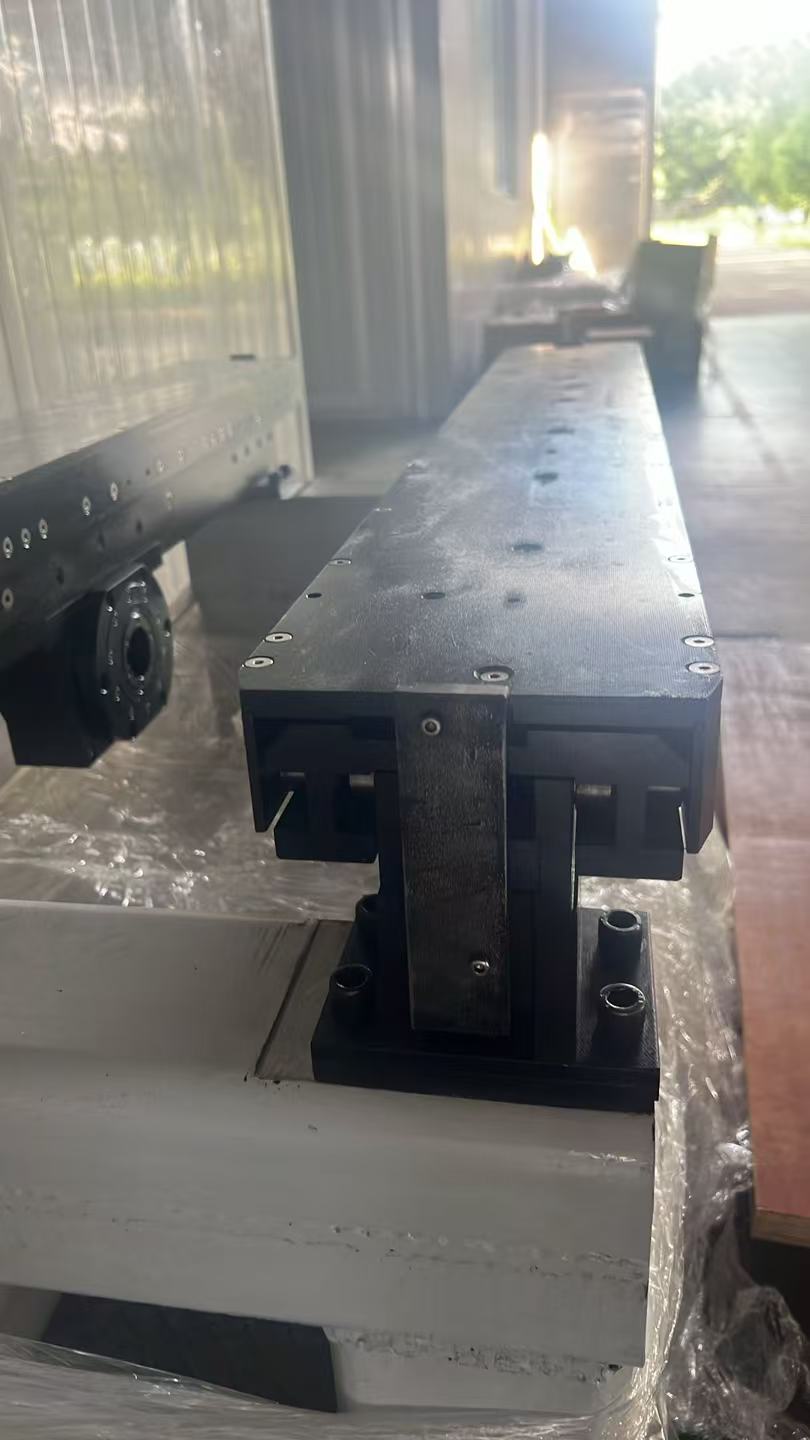

GR-TF / Telescopic forks for automated storage
Telescopic forks for automated warehousing
High-speed, high-precision telescopic forks for nuclear, carton and diverse pallet applications.
- Product category
- Telescopic forks for automated storage
- Product code
- GR-TF
- ENGINEERING
- Customised to drawing and operating conditions
PRODUCT INFORMATION
Product overview
Single-arm, double-arm, dual-motor and Euro, Chinese-standard or special-pallet options.
INDUSTRIES & APPLICATIONS
Industries and specific applications
Explore the product’s role in equipment and the operating conditions to check during design.
Intralogistics and telescopic handling
Pallet and large-container handling
Two-sided support for pallet and container handling requires checks of pallet base, fork spacing, offset loads, synchronisation and clearance during extension.
Explore this industryTECHNICAL DATA
Technical data & configuration
| Configurations | Single-arm, double-arm, dual-motor forks and telescopic platforms |
|---|---|
| Pallet compatibility | Euro, Chinese-standard and custom pallets |
| Application benefit | High speed, accuracy and space efficiency for special-industry projects |
| Industries | Automated warehousing, carton handling and nuclear-related applications |
Product, engineering and application references
PRODUCTION & INSPECTION
From production to inspection
Equipment, process control and inspection records safeguard consistency from material through delivery.
Surface grinding
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Rack-tooth milling
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Induction hardening
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
Five-face machining
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Rack-tooth grinding
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.
Precision inspection
CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Send your application and drawing to our engineering team
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
