GR-RG / Precision guideways & systems
Linear guide components produced by precision flat and profile grinding.
PRODUCT INFORMATION
Guideway grinding, hardening and special-profile machining from one source.
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
Machine tools and long-travel equipment
Rectangular guideways guide slides and support moments. Match mounting flatness, parallelism, contact surfaces, lubrication and protection to limit axis errors.
Explore this industry
Medical equipment and clean precision motion
Components can support smooth positioning of imaging tables and inspection mechanisms. Assess low-speed motion, noise, cleaning and equipment-level verification requirements.
Explore this industryTECHNICAL DATA

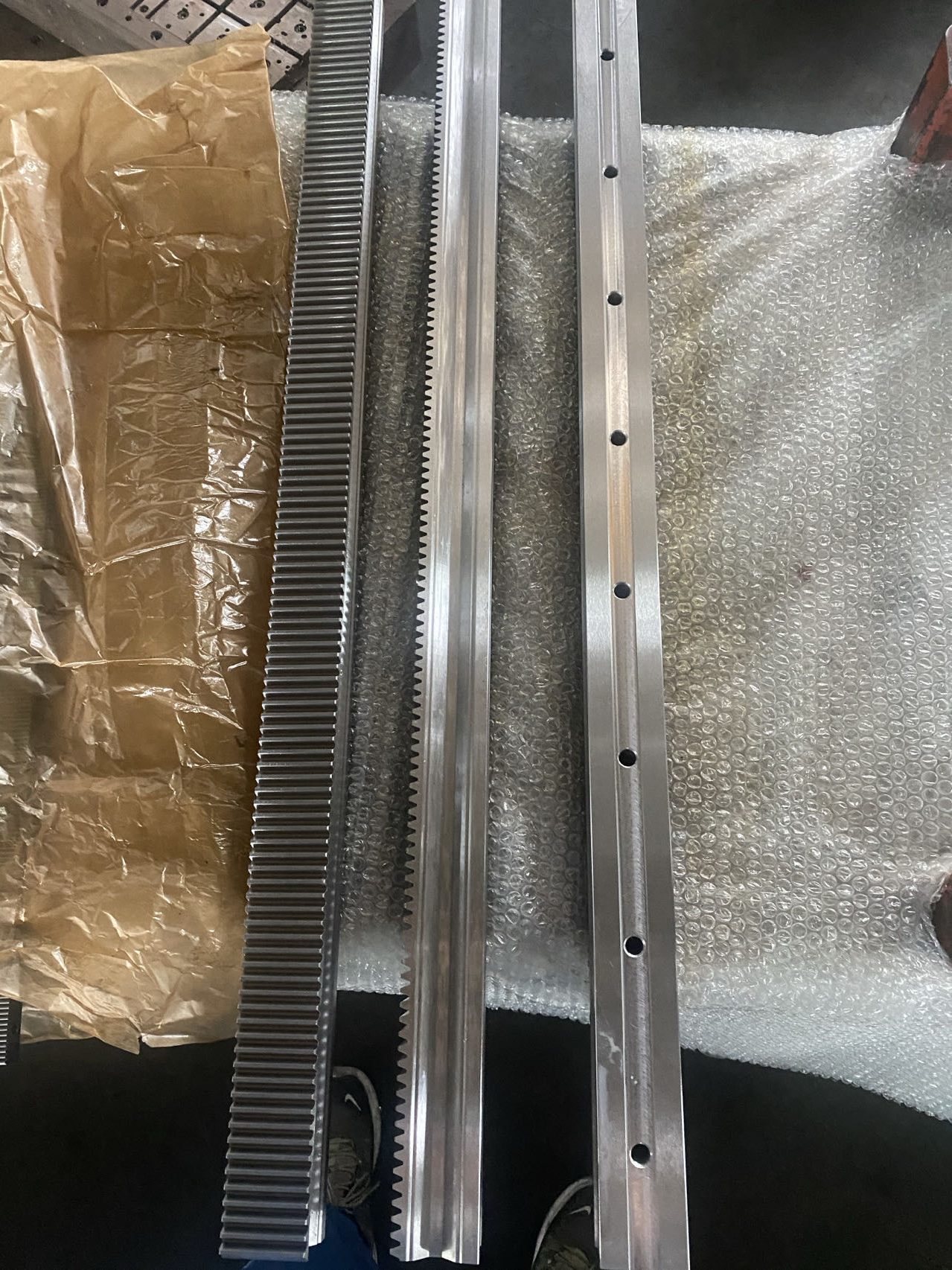

| Product form | High-precision rectangular and custom-profile guideways |
|---|---|
| Processing capability | Flat grinding, profile grinding and high-frequency hardening |
| Delivery scope | Build-to-print and integrable with rack and gearbox |
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.
CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
