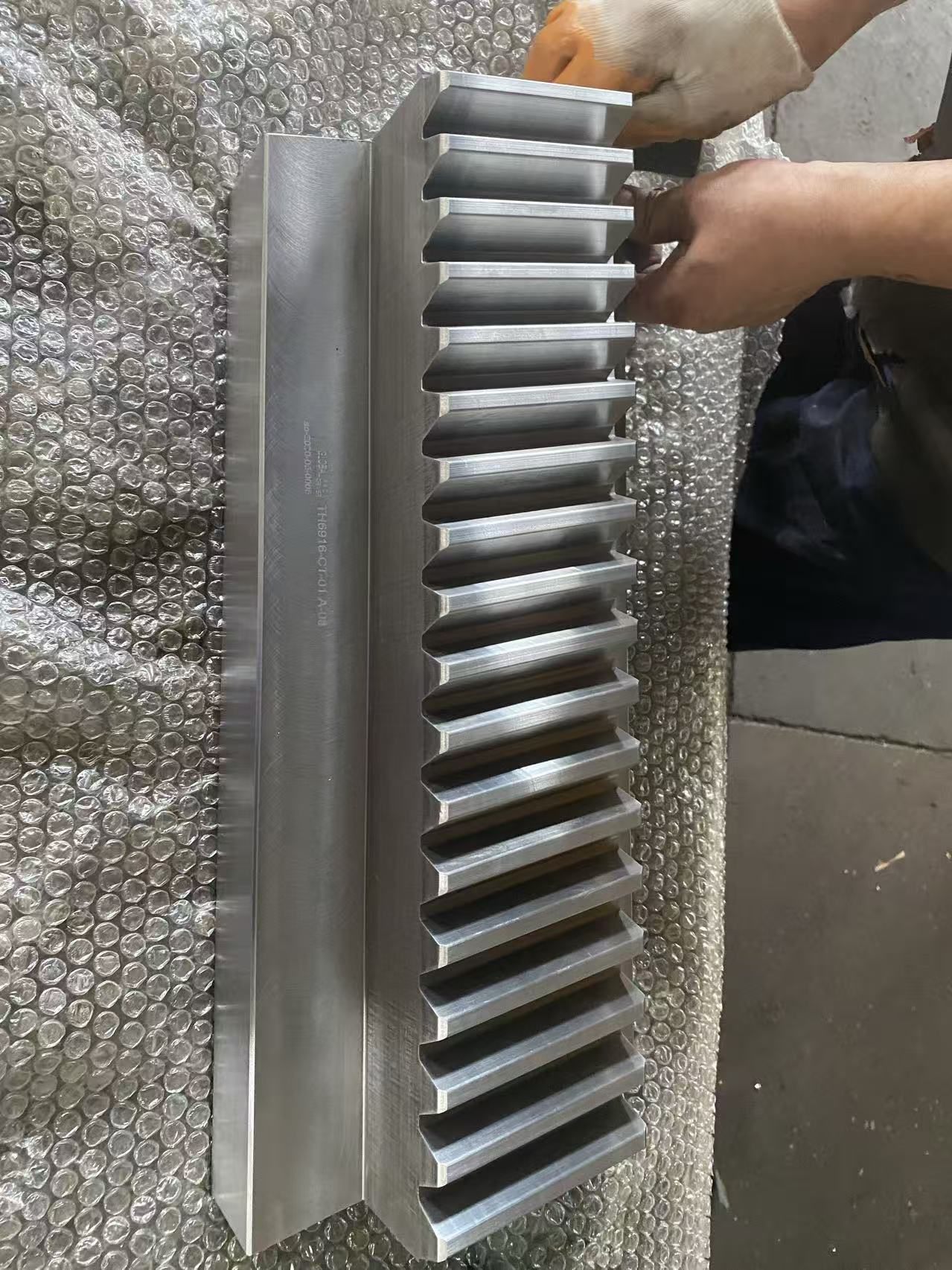

Product and inspection photographs; the accuracy grade is confirmed by the drawing and inspection report.
GR-Q5 / Precision racks & gears
Quality-grade 5 ground rack for premium machine tools, metrology equipment and dynamic axes.
PRODUCT INFORMATION
The sample lists pitch and total-pitch tolerances for module 2-6 and 1,000/1,500/2,000 mm lengths; final acceptance follows the drawing and inspection plan.
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
Machine tools and long-travel equipment
For positioning axes in precision machining, grinding and measurement. Matched pinions, preload and guidance control reversal error and must be checked against whole-axis accuracy.
Explore this industry
Aerospace and large rotary equipment
Fixture movement and long-travel positioning on large aerospace assembly lines require matching workspace, motion accuracy, support structure and sectional installation.
Explore this industryTECHNICAL DATA
| Tooth form and format | Straight or helical, precision ground |
|---|---|
| Module range | M2-M6 |
| Material and treatment | Hardened and ground, quality grade 5 |
| Delivery | Standard lengths, joinable sections or build-to-print |
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.

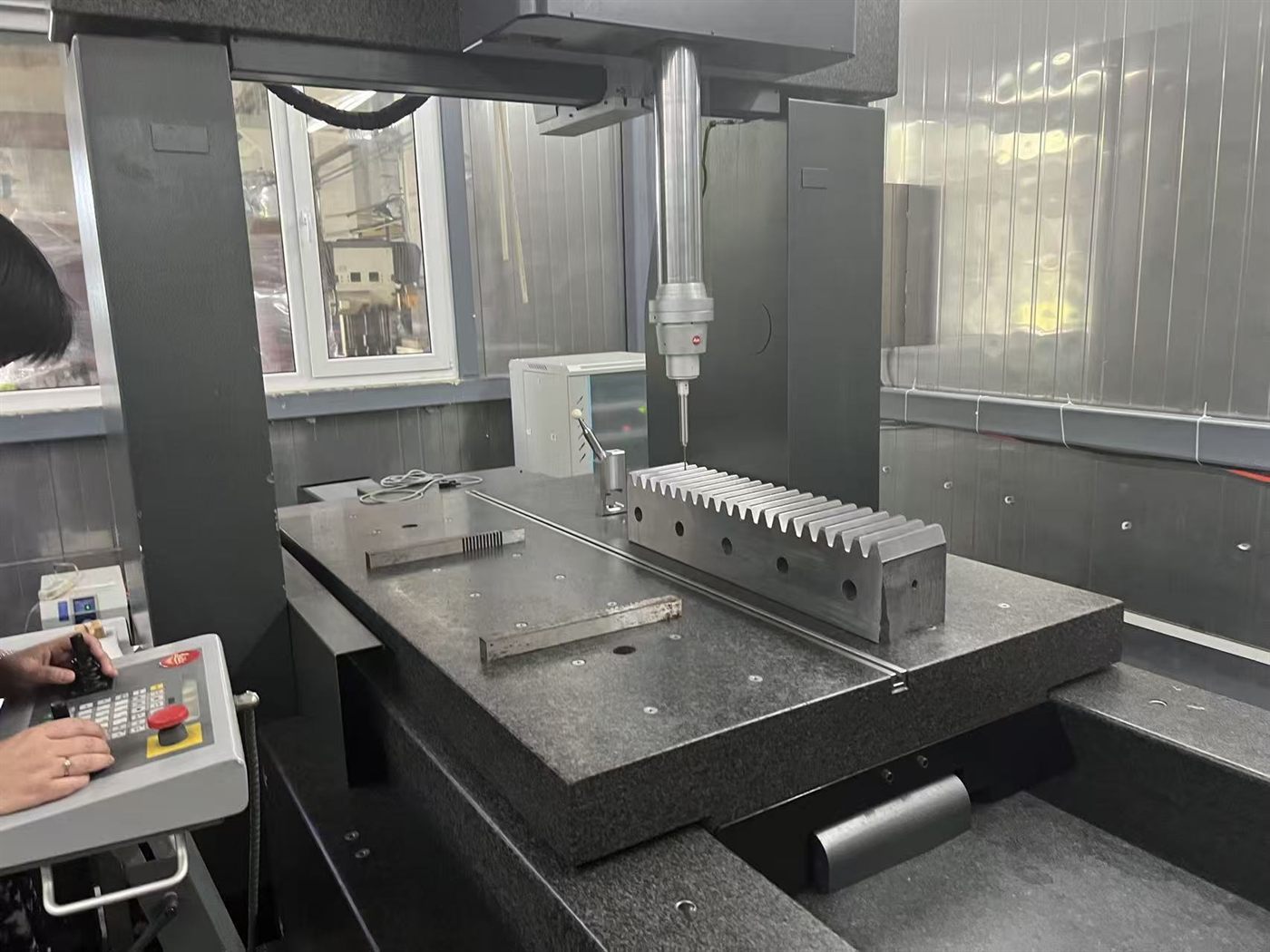

CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
GM-WX
GR-MR
Precision racks & gears
Precision drive components for machine tools, automation and positioning systems.
View product →
GR-GR
Precision racks & gears
Precision-ground for high positioning accuracy, smooth motion and durable performance.
View product →
