GR-Q6 / Precision racks & gears
Quality-grade 6 precision-ground rack balancing accuracy, lead time and cost.
PRODUCT INFORMATION
Covers common modules and 1,000-2,000 mm lengths for machine tools, robot tracks and precision automation.
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
Machine tools and long-travel equipment
For positioning axes in precision machining, grinding and measurement. Matched pinions, preload and guidance control reversal error and must be checked against whole-axis accuracy.
Explore this industryMachine tools and long-travel equipment
Sectional racks extend longitudinal feeds on gantry machining centres. Selection considers cutting force, pitch error, joint accuracy and mounting stiffness.
Explore this industryTECHNICAL DATA
| Tooth form and format | Straight or helical, precision ground |
|---|---|
| Module range | M2-M8 |
| Material and treatment | Hardened and ground, quality grade 6 |
| Delivery | Standard lengths, joinable sections or build-to-print |
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.

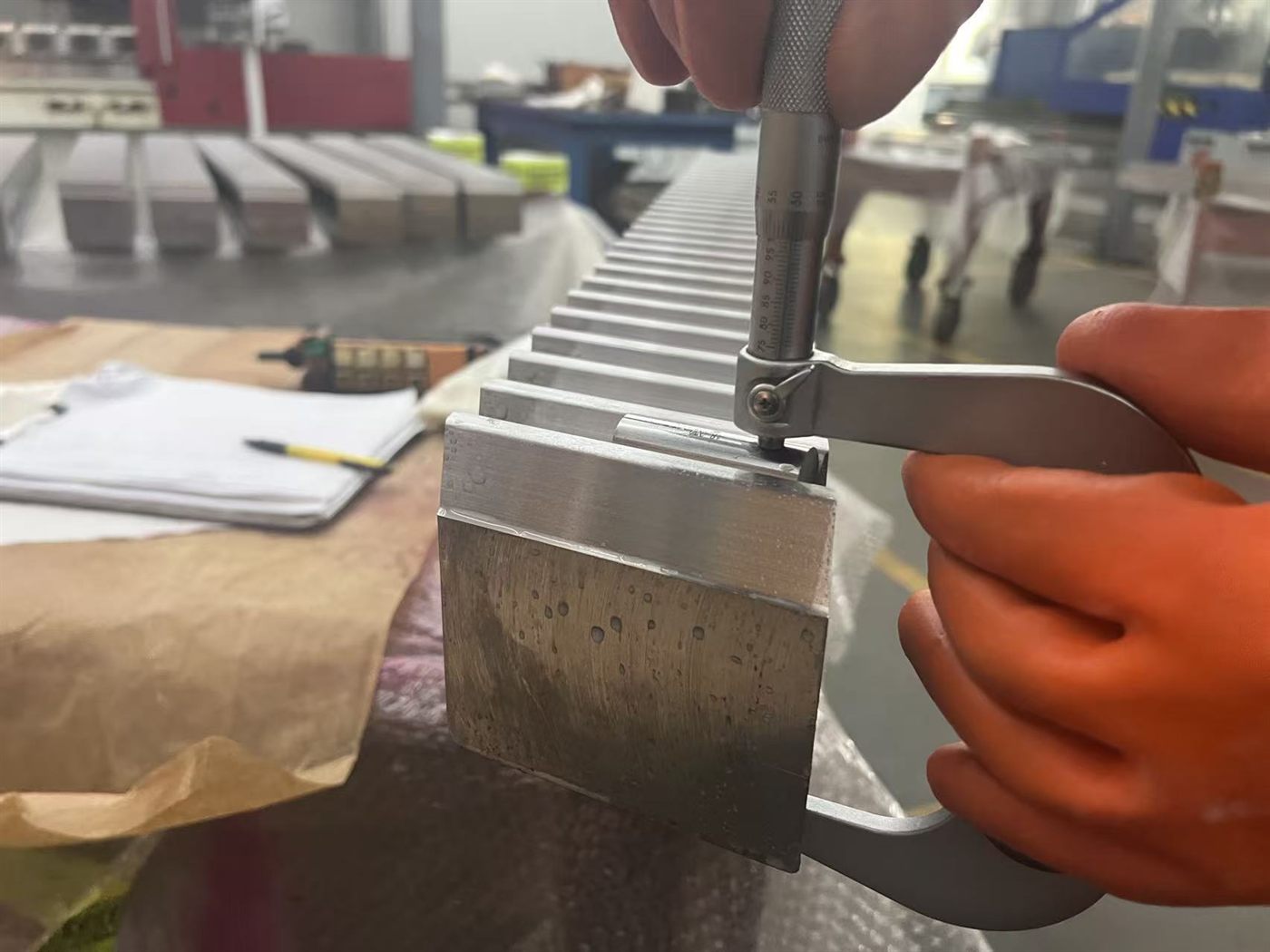

CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
