PRODUCT INFORMATION
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
3C electronics & LCD displays
Roller racks can drive transfer axes for phone, computer and consumer-electronics assembly, dispensing and vision inspection. Check repeatability, smooth motion, preload and particle control.
Explore this industry
3C electronics & LCD displays
Smooth transfer of LCD panels, glass substrates and displays during loading and inspection. Evaluate panel size, gripper offset loads, speed, vibration and cleanliness requirements.
Explore this industryTECHNICAL DATA
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.

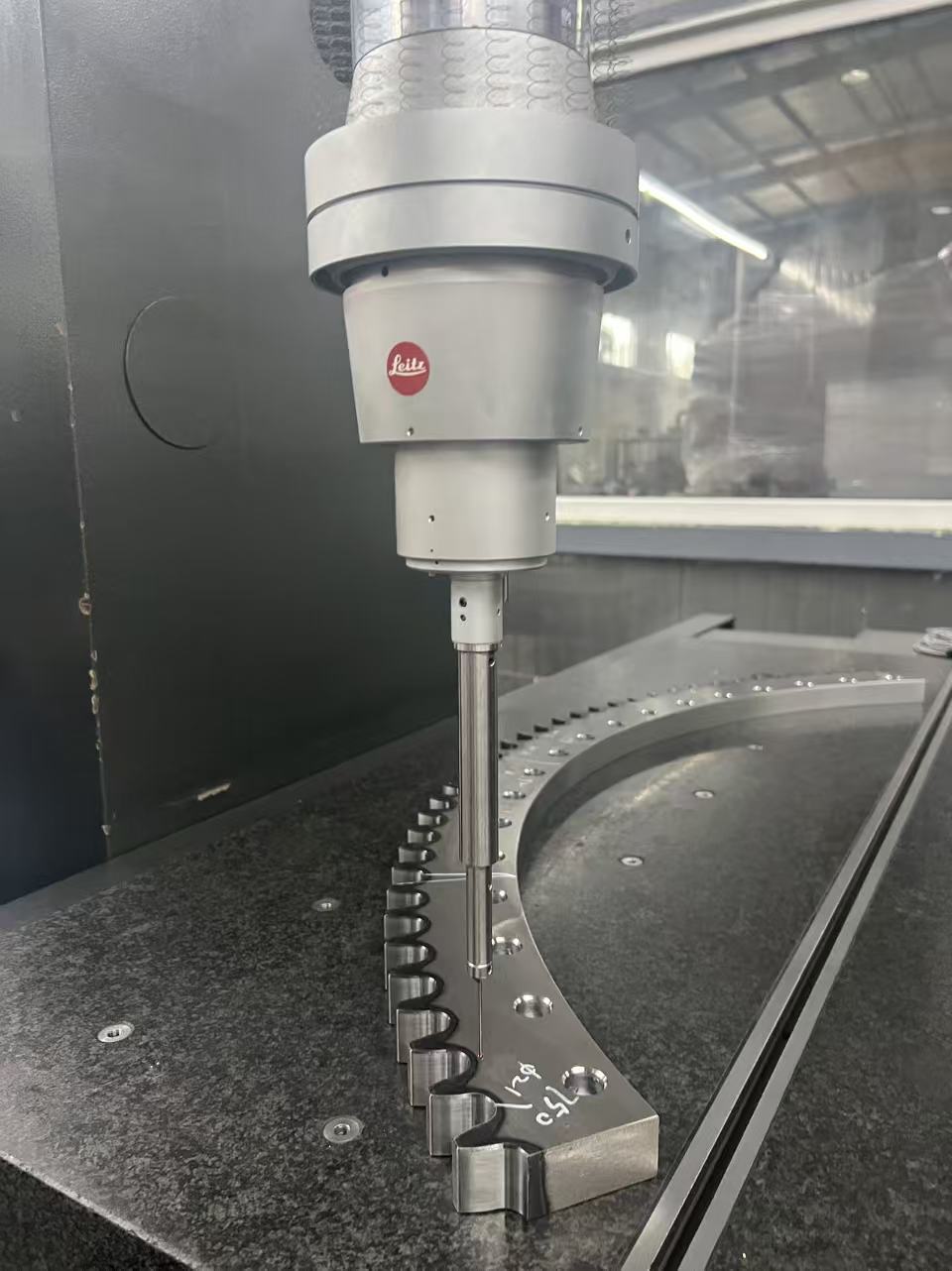

CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
GR-ZB
Roller racks
For high-stiffness, high-response precision drives.
View product →
GR-RS
Roller racks
Trochoidal teeth and bearing-supported rollers provide multiple-point engagement for zero-backlash, low-noise, long-travel motion.
View product →
