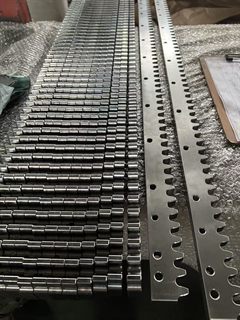

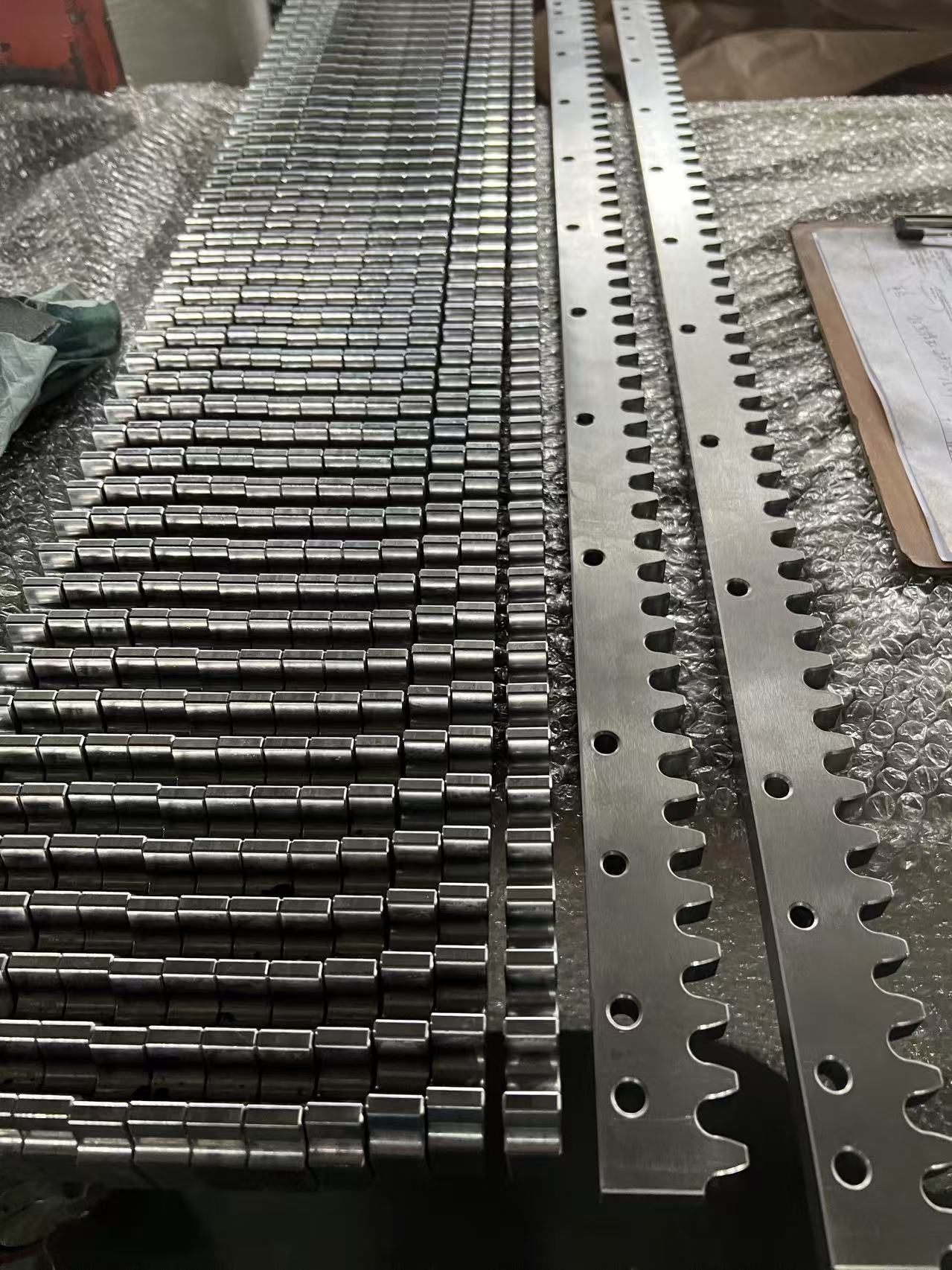

GR-RS / Roller racks

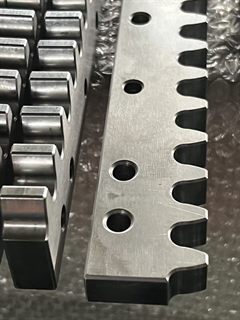

Trochoidal teeth and bearing-supported rollers provide multiple-point engagement for zero-backlash, low-noise, long-travel motion.

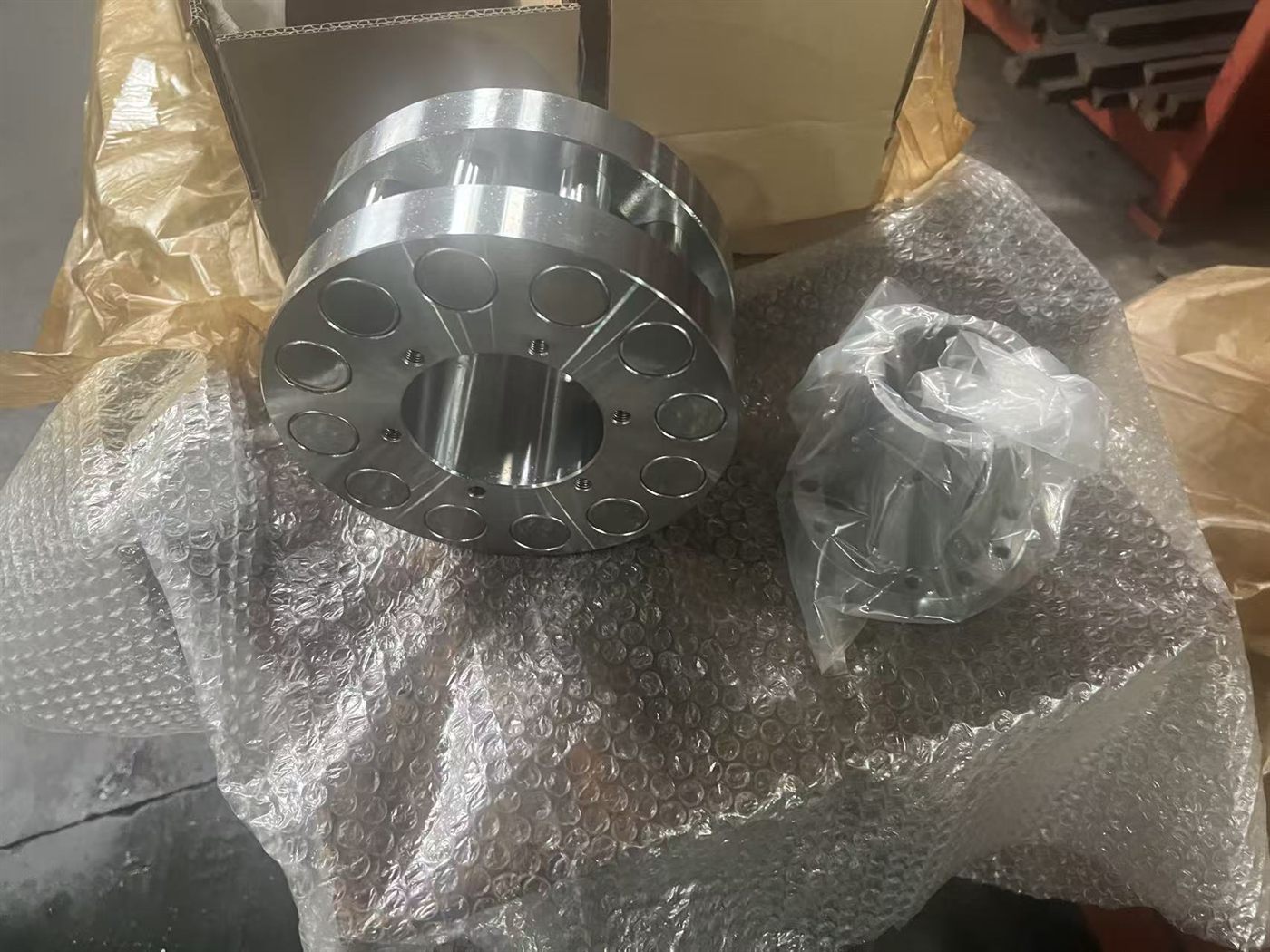

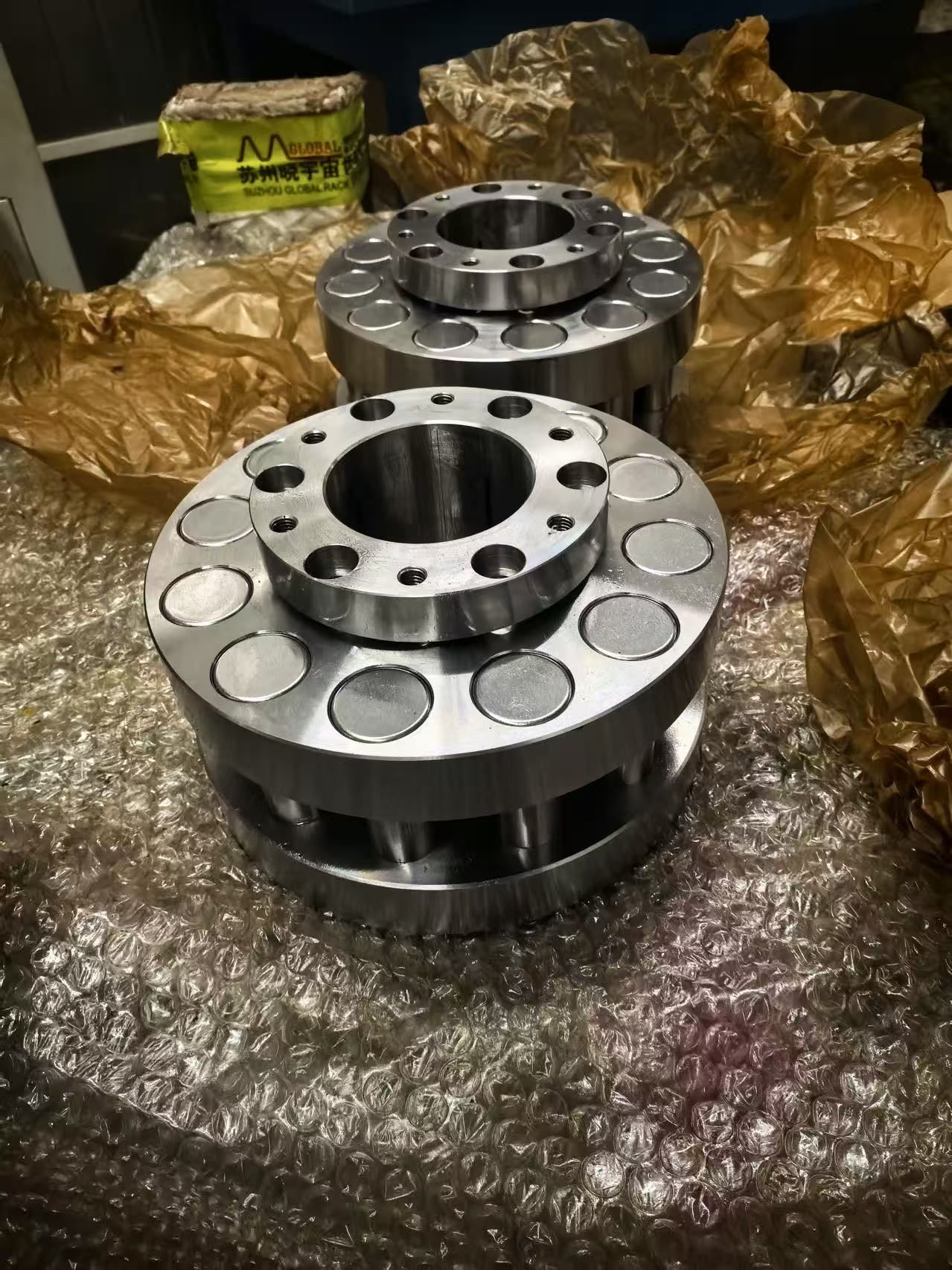

PRODUCT INFORMATION
The TCG range covers nine sizes from 1008A to 4014A. Travel per pinion revolution is 80-560 mm, allowable dynamic load is 130-14,000 N and static load is 200-21,000 N. Joined rack sections support long axes and catalogue speeds above 180 m/min.
INDUSTRIES & APPLICATIONS
Explore the product’s role in equipment and the operating conditions to check during design.
3C electronics & LCD displays
Smooth transfer of LCD panels, glass substrates and displays during loading and inspection. Evaluate panel size, gripper offset loads, speed, vibration and cleanliness requirements.
Explore this industry
Industrial automation and robotics
Indexing drives on rotary assembly and inspection tables require checks of angular positioning, reversal backlash, cycle time, rotary support and preload interfaces.
Explore this industry
3C electronics & LCD displays
Roller racks can drive transfer axes for phone, computer and consumer-electronics assembly, dispensing and vision inspection. Check repeatability, smooth motion, preload and particle control.
Explore this industryTECHNICAL DATA

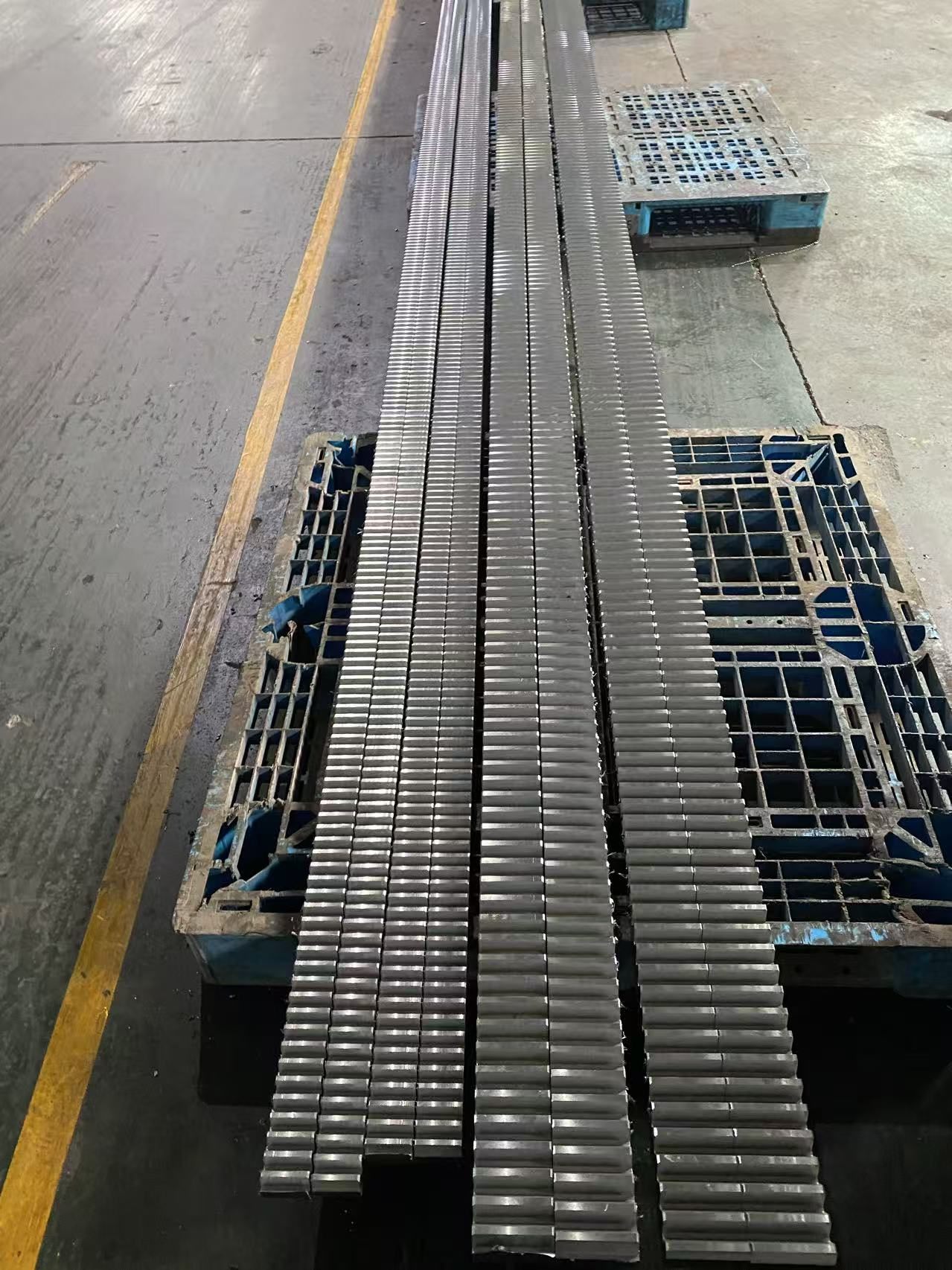

| Series | 1008A / 1010A / 1210A / 1610A / 2010A / 2510A / 3212A / 4012A / 4014A |
|---|---|
| Travel per revolution | 80-560 mm |
| Allowable dynamic load | 130-14,000 N |
| Allowable static load | 200-21,000 N |
| Standard lengths | 480-1,000 mm, joinable |
| Motion characteristics | Zero backlash, low noise, low vibration and low dust |
PRODUCTION & INSPECTION
Equipment, process control and inspection records safeguard consistency from material through delivery.
Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.
Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.
Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.
A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.
Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.

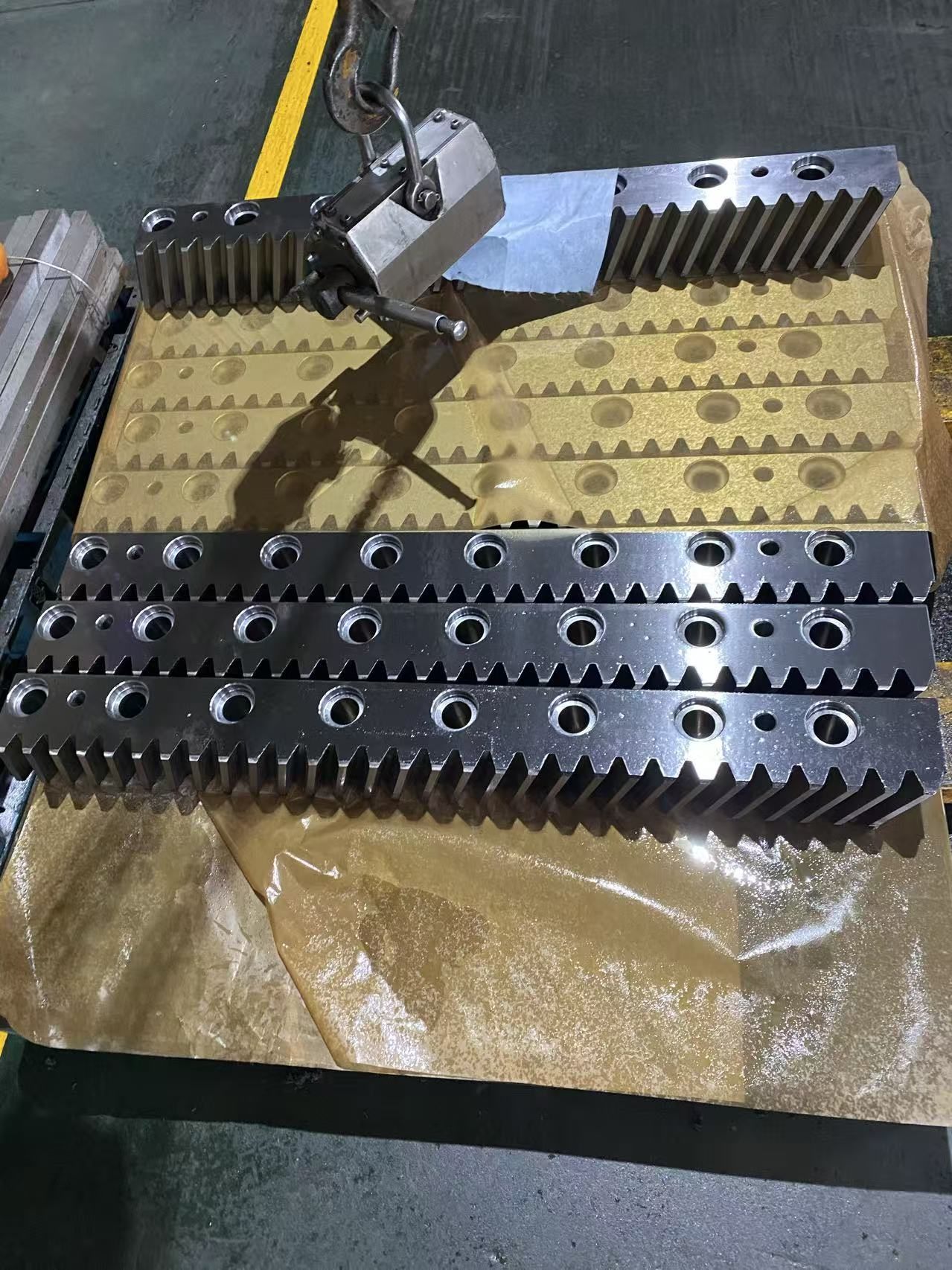

CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.
PROJECT INQUIRY
Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
