GR-PR / Precision racks & gears

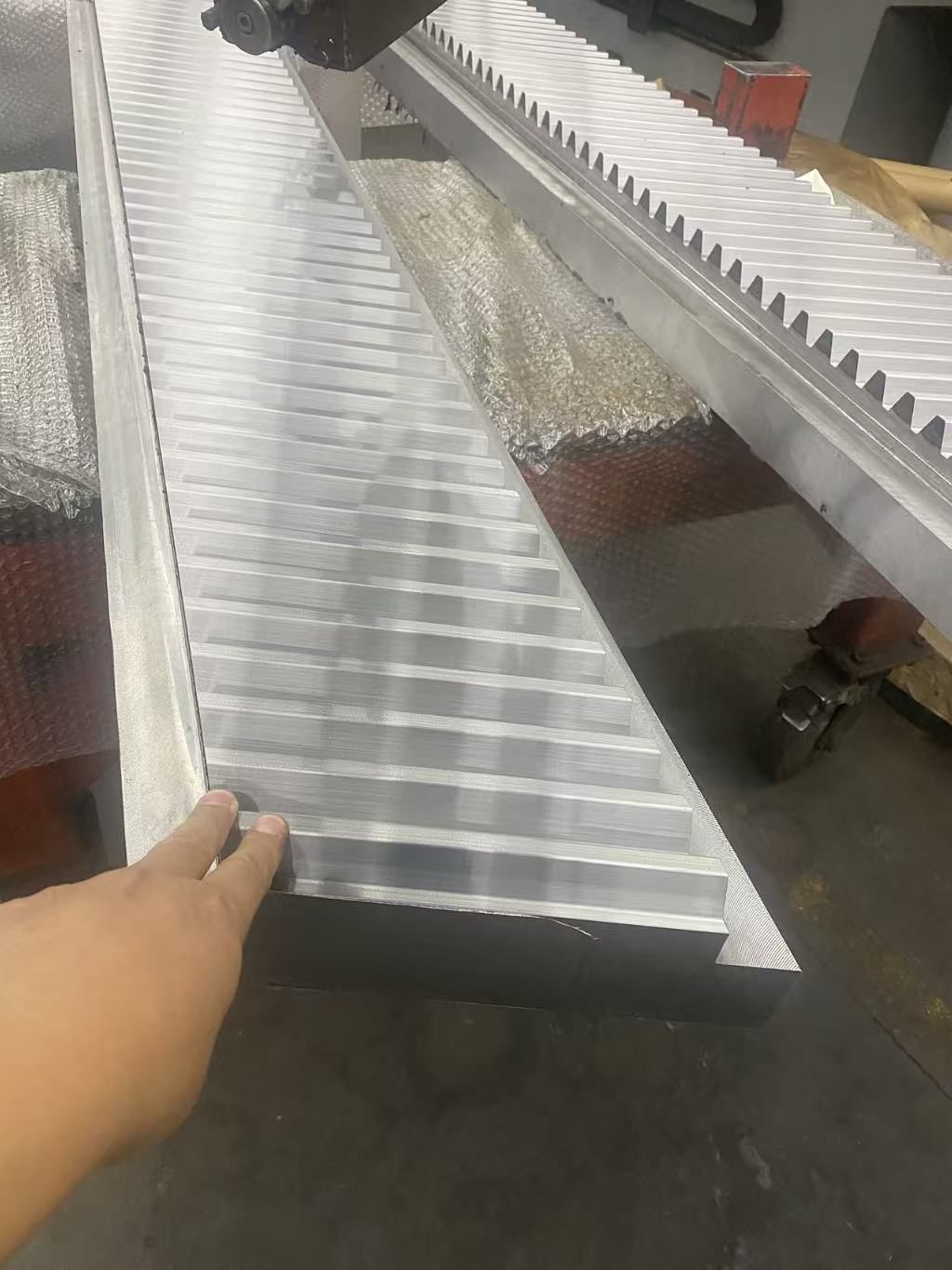

Profile and custom gear racks

For non-standard sections, special installation spaces and integrated functions.

Product category: Precision racks & gears
Product code: GR-PR
ENGINEERING: Customised to drawing and operating conditions

PRODUCT INFORMATION

Product overview

Build-to-print production with manufacturability guidance.

INDUSTRIES & APPLICATIONS

Industries and specific applications

Explore the product’s role in equipment and the operating conditions to check during design.

Custom equipment and special motion

Custom fixtures and special motion mechanisms

Drawing-based sections, holes, teeth and end connections suit constrained fixtures, transfer or rotary mechanisms. Confirm mating parts and assembly datums first.

Explore this industry

Industrial automation and robotics

Integrated guideway and rack axes

A common mounting datum integrates guidance and rack drive on assembly and gantry axes. Verify section, hole patterns, mesh height and service access.

Explore this industry

TECHNICAL DATA

Technical data & configuration

Custom features	Profiled sections, constrained installation spaces and integrated functions
Module & tooth form	Calculated from load, speed, accuracy and mating pinion
Length & joining	Single or matched sections according to project travel
Material & heat treatment	Selected for operating conditions, service life and flank hardness
Engineering support	Calculation, selection, drawing review and lead-time assessment

Product, engineering and application references

PRODUCTION & INSPECTION

From production to inspection

Equipment, process control and inspection records safeguard consistency from material through delivery.

Surface grinding

Datum and mounting faces are ground first to establish a stable basis for tooth processing, heat treatment and inspection.

Rack-tooth milling

Module, tooth form and pitch govern cutter position, tooth-space consistency and machining allowance.

Induction hardening

Heating, travel, cooling and distortion are controlled to achieve tooth hardness and wear resistance.

Five-face machining

A five-face machining centre completes long-rack profiles, mounting faces, hole patterns and end interfaces with fewer set-ups.

Rack-tooth grinding

Dedicated rack grinders finish tooth profile, lead and pitch under controlled cooling for precision transmission.

Precision inspection

CMM, tooth-profile, pitch and manual checks verify dimensions, tooth accuracy, hardness and mounting interfaces.

PROJECT INQUIRY

Send your application and drawing to our engineering team

Share load, travel, speed, accuracy, quantity or drawing data. We will assess selection, manufacturing and lead time.
